Low-Pressure Permanent Magnet Variable-Speed Oil-Injected Rotary Screw Air Compressor: Efficient Air for Modern Industry

Low-pressure compressed air is an essential utility in many industrial operations. It supports pneumatic conveying, textile machinery, food processing, packaging, electronics production, heat treatment, automotive manufacturing, and numerous other processes. Although the pressure requirement in these applications may be lower than that of general factory air systems, the demand for stable flow, clean air, low energy consumption, reliable operation, and easy maintenance remains extremely high.

The BHLV-Z Series low-pressure permanent magnet dual variable frequency two-stage compression rotary screw air compressor is designed to meet these requirements. It combines a dedicated low-pressure air end, two-stage compression, permanent magnet synchronous motor technology, variable-speed control, low-pressure oil-gas separation, and intelligent cooling management in one integrated system. Its operating pressure range is 2 to 5 bar, equivalent to 29.0 to 72.5 psig. Depending on the configuration, the air capacity ranges from 1.8 to 75 cubic meters per minute, or approximately 63.6 to 2,648.6 cubic feet per minute. The available motor power range is 22 to 280 kW, corresponding to approximately 30.0 to 380.7 horsepower.

This combination makes the compressor particularly suitable for users who need large quantities of low-pressure compressed air without paying the energy penalty associated with operating a conventional high-pressure compressor and subsequently reducing the pressure. By matching the compressor architecture to the actual process requirement, the system can contribute to lower operating costs, improved control, reduced mechanical stress, and more consistent production performance.

1. Understanding the Role of Low-Pressure Compressed Air

Many industrial air systems are designed around a common pressure standard, even when individual processes do not require that pressure. A traditional compressor may generate air at a relatively high pressure, after which regulators, valves, and pressure-reducing devices lower it for the end-use equipment. This approach can provide flexibility, but it may also result in unnecessary energy consumption.

Compression requires energy. In general, the higher the discharge pressure, the greater the power required to produce a given amount of air. If a process operates effectively at 2 to 5 bar, generating air at a substantially higher pressure can create avoidable losses. Pressure reduction also does not recover the energy already used to compress the air. For this reason, a low-pressure compressor designed specifically for the required operating range can be a more rational solution.

Low-pressure applications include pneumatic conveying of powders and granules, aeration, wastewater treatment, textile air systems, glass production, paper machinery, food packaging, air knives, vacuum packaging support, and certain forms of industrial automation. These processes often require high flow rather than high pressure. A compressor that is optimized for this operating profile can deliver the required volume with better energy alignment.

The BHLV-Z Series is developed around this principle. Instead of treating low-pressure service as a reduced setting on a standard high-pressure machine, it uses a dedicated low-pressure compression system. This design approach helps the air end, motor, oil circuit, cooling system, and control system operate in a coordinated manner at the intended pressure range.

2. Product Overview

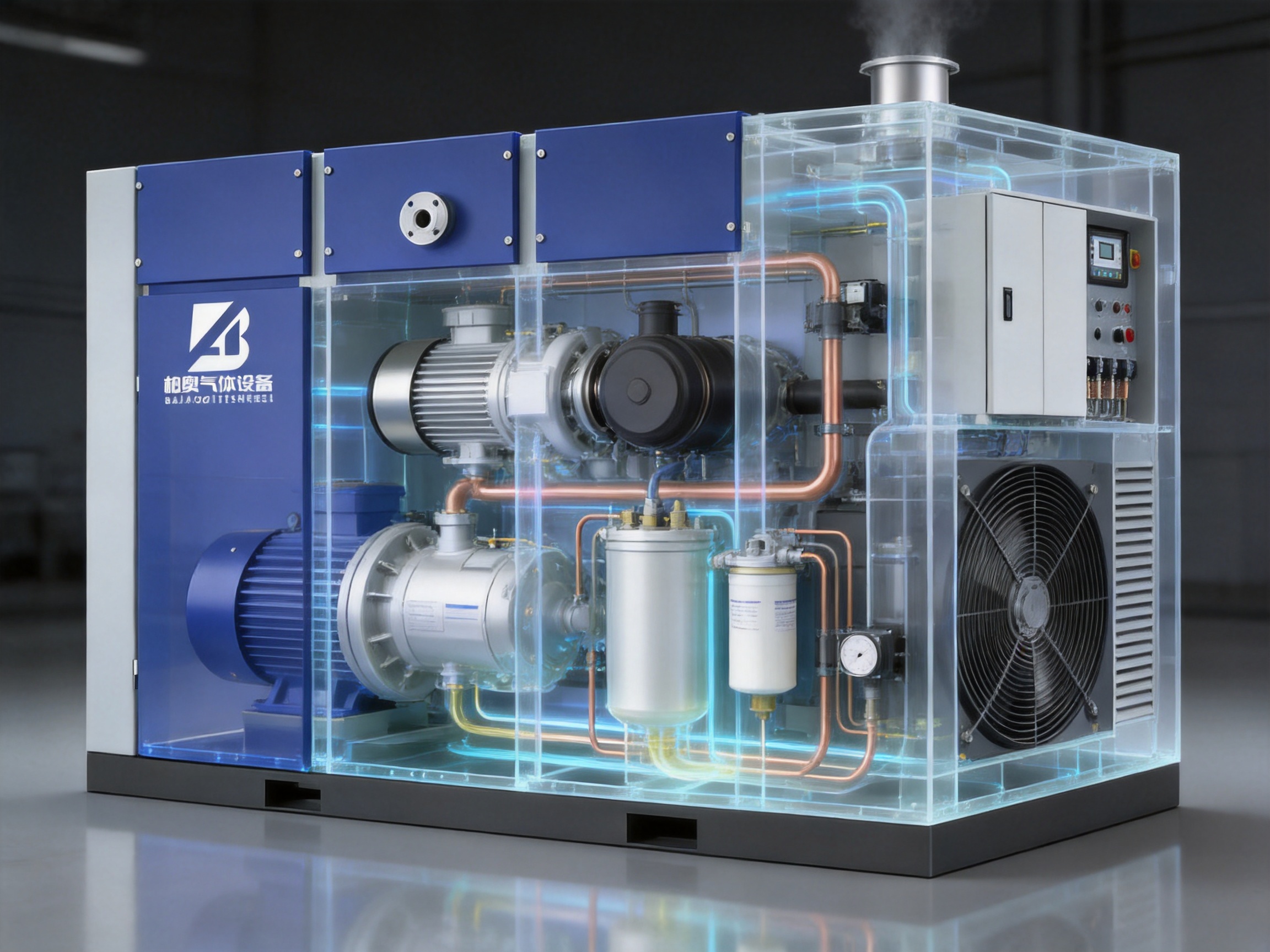

The BHLV-Z Series is an oil-injected rotary screw air compressor with two-stage compression. It incorporates an IE5-efficiency permanent magnet synchronous motor and a dual variable frequency design. One variable frequency drive regulates the air end, while another controls the cooling fan. This allows the compressor to adapt both air production and cooling demand to actual operating conditions.

The equipment is available across a broad capacity range. Smaller configurations begin at 22 kW and approximately 1.8 cubic meters per minute. Larger configurations extend to 280 kW and up to 75 cubic meters per minute. The working pressure range is 2 to 5 bar, allowing users to select a configuration that corresponds closely to their process requirements.

The principal design features include:

• A dedicated low-pressure two-stage compression system.

• An IE5-efficiency permanent magnet synchronous motor.

• Dual variable frequency control for the air end and cooling fan.

• A low-pressure oil-gas separation system designed to limit oil content.

• A quiet centrifugal fan configuration.

• An enhanced cooler with side intake and top exhaust airflow.

• A hot-and-cold-zone isolation structure.

• A touchscreen microcomputer controller for real-time status monitoring.

These features are not isolated additions. Their value comes from how they function together. The low-pressure air end supports efficient compression, the permanent magnet motor provides an efficient drive source, the variable-speed system follows demand, and the cooling and separation systems protect air quality and operating stability.

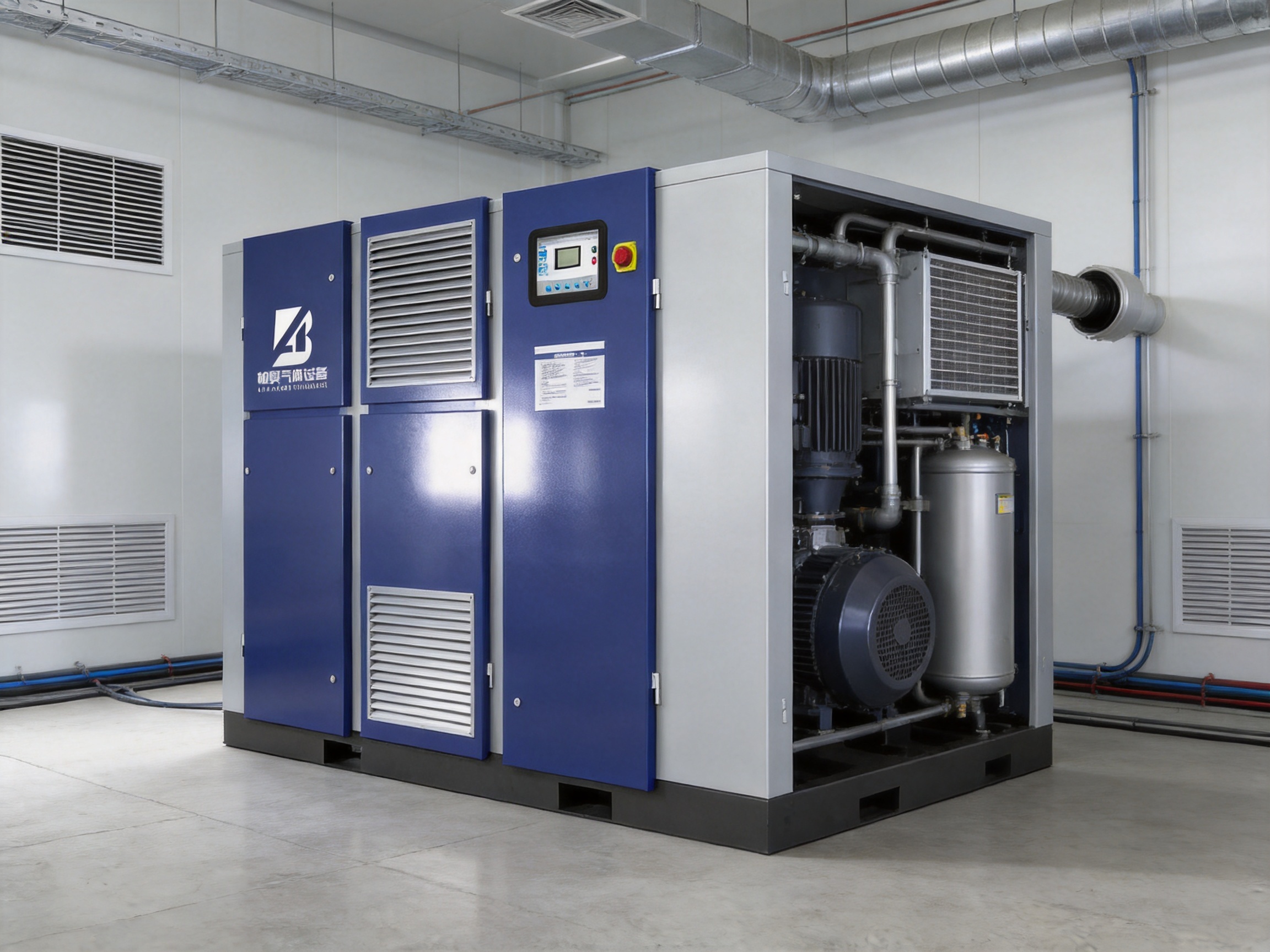

Low-Pressure Permanent Magnet VSD Oil-Injected Rotary Screw Air Compressor

3. Dedicated Two-Stage Low-Pressure Compression

One of the most important advantages of the product is its dedicated two-stage compression structure. In a two-stage compressor, the total compression ratio is divided between two compression stages rather than being achieved in a single step. This can improve the compression process by reducing the pressure increase handled by each stage.

For low-pressure applications, a dedicated air end is particularly important. A conventional high-pressure air end may be capable of operating at a lower pressure, but it is not necessarily optimized for that duty. Its internal geometry, pressure ratio, oil circulation, and control strategy may have been selected for a different operating range. When the machine is designed from the beginning for low-pressure operation, the system can be better matched to the actual load profile.

Two-stage compression can help distribute mechanical and thermal stresses. The compression process is divided into a first stage and a second stage, allowing intermediate conditions to be managed more effectively. Oil injection supports sealing, lubrication, and heat control within the compression process. The result is a coordinated arrangement intended to deliver stable low-pressure air over a broad operating range.

Compared with a single-stage arrangement operating under unfavorable conditions, a well-designed two-stage system may offer improved efficiency and more consistent discharge conditions. It can also help reduce the thermal burden on individual compression elements. These benefits are especially relevant in applications where the compressor operates for long hours each day.

The two-stage structure also supports system scalability. The available air capacity extends from relatively compact installations to large industrial systems. This means that the same product family can serve different production scales while maintaining the same basic operating concept.

3.1 Matching Compression to Process Demand

Compressed air systems often experience fluctuating demand. A production line may require a high volume during active periods and much less air during pauses, changeovers, or partial-load operation. A fixed-speed compressor may continue running at a near-constant speed, using control methods that reduce output but do not always reduce energy consumption proportionally.

The low-pressure air end in this product is intended to work with variable-speed control. Rather than generating excess pressure and then throttling it away, the compressor can adjust its operating speed according to demand. This supports closer matching between energy input and useful air output.

Correct sizing remains important. Variable-speed control cannot compensate for a fundamentally oversized or undersized installation. However, when the compressor is properly selected, the combination of a dedicated low-pressure air end and variable-speed operation can help reduce waste caused by unstable or changing demand.

4. IE5 Permanent Magnet Synchronous Motor

The compressor is equipped with an IE5-efficiency permanent magnet synchronous motor. Motor efficiency is a major factor in the total life-cycle cost of an industrial compressor because the electric motor operates for many hours and may account for a substantial portion of the system’s energy consumption.

A permanent magnet synchronous motor uses permanent magnets to establish the rotor magnetic field. Unlike a conventional induction motor, it does not need to create the rotor magnetic field through induced current in the rotor. This can reduce certain electrical losses and support high efficiency across appropriate operating conditions.

The IE5 efficiency classification represents a very high motor efficiency level under applicable testing standards. Actual system performance depends on operating pressure, air demand, ambient temperature, control settings, installation conditions, and maintenance. Nevertheless, using an IE5 motor provides a strong foundation for reducing motor-related energy losses.

The motor is also well suited to variable-speed operation. The compressor can adjust motor speed to regulate air delivery instead of relying only on start-stop control or mechanical unloading. This is particularly valuable in facilities with variable air demand. The motor can operate at a lower speed when the process requires less air and increase speed when demand rises.

Permanent magnet motors can also provide high torque density and a compact drive arrangement. A more compact motor may help reduce the overall equipment footprint, although the final installation dimensions depend on the selected model and package configuration. The motor and air end are designed as part of an integrated compressor system rather than as unrelated components.

4.1 Energy Advantages over Conventional Fixed-Speed Systems

A fixed-speed compressor generally operates at one nominal motor speed. When demand is lower than the rated output, the system may unload, modulate, or cycle on and off. During unloading, the motor may continue consuming power while producing little or no useful compressed air. Frequent cycling can also increase mechanical and electrical stress.

A variable-speed compressor can reduce these losses by adjusting production more continuously. When combined with a high-efficiency permanent magnet motor, the drive system is better positioned to maintain efficient operation over a wider range of demand.

The most meaningful energy comparison should be based on the complete compressed air system rather than on motor nameplate efficiency alone. Users should evaluate the annual operating hours, average load, pressure requirement, electricity cost, leakage rate, air quality requirement, cooling conditions, and maintenance practices. Under suitable conditions, the BHLV-Z Series can provide an advantage over a conventional fixed-speed high-pressure compressor used for the same low-pressure task.

5. Dual Variable Frequency Control

The product uses a dual variable frequency design. The first variable frequency system controls the air end and therefore adjusts compressed air production. The second controls the cooling fan. This is a significant feature because cooling demand does not remain constant under all operating conditions.

In a conventional arrangement, a cooling fan may run at a constant speed whenever the compressor is operating. At low load or in moderate ambient conditions, constant-speed cooling can consume more energy than necessary and may create unnecessary noise. By allowing the fan speed to vary, the cooling system can respond more closely to the actual heat-rejection requirement.

The independent control of the air end and fan provides greater flexibility. The compressor can increase air production when demand rises while adjusting fan speed to maintain suitable operating temperatures. Conversely, at lower output, the system may reduce both compression speed and fan speed, subject to control requirements and temperature protection limits.

This dual control arrangement can produce several practical benefits:

• Reduced auxiliary power consumption compared with a continuously running fixed-speed fan.

• Improved temperature regulation across changing load conditions.

• Lower operating noise during partial-load periods.

• More flexible adaptation to different ambient temperatures.

• Potentially smoother system operation with fewer abrupt control changes.

The exact energy savings depend on the installation and operating profile. Even so, controlling both the main drive and the cooling fan demonstrates a system-level approach to efficiency. The compressor is not optimized only at the air end; its auxiliary systems are also considered.

6. Low-Pressure Oil-Gas Separation and Air Quality

Oil injection is used in rotary screw compressors to support lubrication, sealing, and temperature management. After compression, the oil must be separated from the compressed air before the air leaves the compressor package. Effective separation is important for downstream equipment, product quality, maintenance intervals, and oil consumption.

The BHLV-Z Series uses a low-pressure oil-gas separation system designed to ensure minimal oil content. The separation process generally involves controlled flow velocity, an oil separation vessel or separator structure, filtration, and oil return to the compression circuit. The detailed performance depends on the model, operating pressure, oil condition, separator element condition, and maintenance schedule.

Low oil carryover is especially valuable in applications where compressed air comes close to production equipment. Textile machinery, packaging lines, electronics assembly, food processing support systems, and precision pneumatic equipment may be sensitive to oil contamination. The compressor should still be combined with downstream filtration and drying equipment when the application requires a specified air quality class.

Users should distinguish between the oil content leaving the compressor and the final air quality delivered at the point of use. A compressor with low oil carryover provides an important first stage of protection, but the final system may also require an air receiver, water separator, refrigerated dryer, desiccant dryer, coalescing filters, activated carbon filters, or sterile filtration depending on the process.

Proper oil selection is also essential. The recommended lubricant, oil change interval, separator replacement schedule, and operating temperature should be followed according to the equipment documentation. Poor maintenance can increase oil carryover even when the original separation system is properly designed.

6.1 Protecting Downstream Equipment

Oil contamination can foul valves, sensors, filters, and pneumatic actuators. In some production environments, it can also affect surface treatment, printing, packaging, coating, or electronic assembly. Low oil content helps reduce the contamination burden placed on downstream equipment.

Stable separation can also support more predictable maintenance. If oil carryover increases, users may experience rising filter pressure drop, frequent filter replacement, deposits in air lines, and reduced performance of end-use devices. A well-maintained oil-gas separation system helps control these risks.

7. Cooling Design for Industrial Environments

Heat management is central to compressor reliability. Compression generates heat, and the resulting heat must be removed efficiently. If operating temperatures become excessive, lubricant performance may deteriorate, seals may age more quickly, and protective shutdowns may occur.

The BHLV-Z Series is equipped with an enhanced cooler using a side-intake and top-exhaust design. This arrangement is intended to support a practical airflow path through the equipment. Air enters from the side, passes through the cooling area, and is discharged upward. Depending on the room layout, upward exhaust can help separate hot discharge air from the cooler intake air.

The design is particularly useful when the compressor is installed in a dedicated equipment room. However, the installation should still provide adequate ventilation, sufficient clearance, and appropriate ducting if hot air must be removed from the room. The intake area should be kept clear of dust, fibers, corrosive vapors, and other contaminants.

The cooler should be inspected and cleaned at appropriate intervals. A blocked or contaminated cooler reduces heat transfer and increases the workload on the fan. In dusty or fiber-producing industries, inspection may be required more frequently than in a clean plant environment.

7.1 Hot-and-Cold-Zone Isolation

The compressor uses a hot-and-cold-zone isolation system. Separating hot exhaust areas from cooler intake and control areas can help reduce recirculation of heated air. It can also protect sensitive components from unnecessary exposure to elevated temperatures.

Thermal separation is important for both performance and service life. If the cooling air repeatedly passes through a hot zone before entering the cooler, the temperature difference available for heat transfer becomes smaller. This can reduce cooling effectiveness. By managing airflow paths, the equipment can maintain more stable operating conditions.

The hot-and-cold-zone arrangement may also improve service access. Components that require regular inspection can be organized more logically, while hot surfaces and exhaust pathways remain separated from operator access areas. The exact internal layout varies by model, but the design principle supports safer and more orderly equipment management.

8. Quiet Centrifugal Fan Configuration

Noise is an important consideration in compressor rooms, workshops, and production areas located near employees or offices. The product uses a quiet centrifugal fan configuration to support efficient heat removal with controlled acoustic performance.

Centrifugal fans can provide stable airflow through a cooler and may be suitable for systems requiring an organized intake and exhaust path. Their performance depends on fan geometry, motor control, duct resistance, cooler cleanliness, and installation conditions. The fan’s variable frequency control allows its operating speed to be adjusted according to cooling demand.

Lower noise can improve the working environment and make abnormal sounds easier to identify. A change in fan sound, bearing noise, vibration, or airflow may indicate contamination, wear, imbalance, or another maintenance issue. A quieter baseline can therefore support condition awareness as well as operator comfort.

Noise performance should be evaluated at the complete installation rather than from the compressor alone. Room acoustics, foundations, piping, ductwork, vibration isolation, and neighboring equipment can all affect perceived sound levels. Correct installation remains essential.

9. Touchscreen Microcomputer Controller

The compressor includes a touchscreen microcomputer controller for real-time monitoring of operating status. A modern controller helps operators understand the condition of the system without relying solely on physical gauges or manual inspection.

Typical monitoring functions may include pressure, temperature, motor status, fan status, operating hours, alarm conditions, loading condition, and maintenance reminders. The exact display and functions depend on the selected configuration and control software.

A touchscreen interface can improve usability by presenting information in a structured format. Operators can review current values, identify alarms, confirm running conditions, and access service-related information from a central panel. Clear information is particularly important in large installations where the compressor is one of several connected utility systems.

Real-time monitoring can also support preventive maintenance. If discharge temperature begins to increase gradually, if pressure behavior changes, or if the fan operates at an unusual speed, the trend may indicate a developing issue. Early attention can reduce the chance of an unexpected shutdown.

9.1 Operational Control and Protection

The controller is designed to coordinate the air end, motor, fan, and protection functions. It can regulate operation according to pressure demand while monitoring key safety parameters. Depending on the control configuration, protective functions may include over-temperature protection, overload protection, phase protection, pressure monitoring, sensor fault detection, and emergency shutdown control.

Protection functions are not a substitute for maintenance or proper installation. They are intended to help prevent operation outside safe limits. Users should ensure that sensors remain accurate, electrical connections are secure, ventilation is adequate, and alarms are investigated rather than repeatedly reset without diagnosis.

10. Product Advantages Compared with Conventional Alternatives

The BHLV-Z Series offers a combination of features that can provide several advantages over conventional high-pressure fixed-speed compressors used in low-pressure applications. The comparison should be made according to the user’s actual operating conditions, but the main areas of potential advantage are clear.

10.1 Better Pressure Matching

A machine designed for 2 to 5 bar operation is more closely matched to applications that require low pressure. This can reduce the need to generate unnecessary pressure and then reduce it through downstream regulation. Better pressure matching may improve energy utilization and simplify the compressed air system.

10.2 Two-Stage Compression

The two-stage structure divides the compression work between two stages. This can support better thermal management and smoother operation compared with a single-stage configuration operating outside its preferred design range.

10.3 High-Efficiency Motor Technology

The IE5 permanent magnet synchronous motor provides a high-efficiency drive solution. When operated with variable-speed control and correctly sized for the application, it can reduce electrical losses compared with lower-efficiency motor systems.

10.4 Variable-Speed Air Production

The air end can adjust its speed to follow changing demand. This reduces the need for continuous full-speed operation during partial-load periods and can improve the relationship between power consumption and useful air output.

10.5 Variable-Speed Cooling

The cooling fan is controlled independently through a second variable frequency system. This can reduce unnecessary fan power and noise while maintaining suitable cooling performance.

10.6 Low Oil Carryover

The low-pressure oil-gas separation system is designed to minimize oil content. This can reduce contamination risks and help protect downstream equipment, especially when combined with appropriate air treatment equipment.

10.7 Improved Installation Airflow

The side-intake and top-exhaust cooler arrangement provides a clear airflow concept for compressor rooms. The hot-and-cold-zone isolation system further supports thermal management.

10.8 User-Oriented Monitoring

The touchscreen controller offers accessible information about operating status. This can reduce the time required to identify abnormal conditions and simplify daily operation.

These advantages do not mean that every installation will automatically achieve the same energy or maintenance results. Actual performance depends on site conditions, operating hours, air leakage, pressure settings, ambient temperature, maintenance, and system design. The product’s value lies in providing the technologies needed to optimize these factors.

11. Manufacturing Strengths and Engineering Capability

The manufacturer is a gas equipment enterprise located in Fuyang District, Hangzhou, Zhejiang Province, China. Its operations integrate research and development, product design, manufacturing, installation, and after-sales service. This integrated structure is valuable for industrial equipment because performance depends not only on individual components but also on engineering coordination.

The company operates a 3,000-square-meter standardized workshop, a 500-square-meter office area, and a 500-square-meter warehouse. These facilities support product assembly, engineering management, inventory control, technical communication, and customer service. A dedicated workshop provides an organized environment for equipment production and helps separate manufacturing activities from general storage and administration.

The company’s professional team is involved in product development, production, and customer support. Such integration allows technical feedback from installations and service activities to be considered during product improvement. It also enables the company to provide more than a standard machine: it can participate in selection, system design, installation coordination, commissioning, and after-sales assistance.

11.1 Product Development Approach

The company’s equipment is developed using overseas technologies and optimized for industrial conditions in China. This approach combines established technical concepts with practical adaptation to local operating environments. Industrial conditions may include variable ambient temperatures, dust, humidity, fluctuating electricity quality, long operating hours, and diverse customer requirements.

Optimization for actual industrial conditions is important because a compressor is rarely operated in a laboratory environment. It must perform in workshops, production lines, equipment rooms, and outdoor or semi-outdoor installations where environmental conditions can vary. Material selection, cooling capacity, control settings, enclosure design, and maintenance access all influence practical reliability.

The BHLV-Z Series reflects this engineering approach through its low-pressure specialization, cooling configuration, separation system, dual variable frequency control, and touchscreen monitoring. These features address the complete operating environment rather than focusing only on nominal air capacity.

11.2 Manufacturing Process Considerations

Reliable compressor production requires controlled processes at several stages. The air end and motor must be selected and assembled with appropriate alignment. Oil circuits must be checked for correct routing and sealing. Coolers and fans must be installed to maintain designed airflow. Electrical components must be wired and inspected according to the control scheme. Sensors must be positioned correctly and connected to the controller.

A standardized manufacturing workshop can support consistent assembly procedures. Typical quality-focused activities include incoming component inspection, assembly verification, electrical testing, leak checking, sensor verification, control-system testing, and operational inspection before shipment. The specific tests applied may vary by model and customer order.

Quality control should also extend to packaging and logistics. Compressors contain precision components and electrical systems that must be protected from impact, moisture, contamination, and improper handling. Organized warehouse management helps ensure that parts, consumables, and replacement items are available for production and service requirements.

Because the company also provides installation and after-sales service, it can maintain a direct connection between factory production and field operation. This can help identify recurring installation issues, improve documentation, and strengthen commissioning procedures.

11.3 Customized Industrial Solutions

Industrial compressed air requirements vary significantly. One customer may need a compact unit for a single production line, while another may require several large compressors operating in parallel. Some facilities prioritize low noise, others focus on continuous duty, and some require special air treatment because the compressed air contacts sensitive products.

The company’s broader specialization in gas separation and purification equipment supports a system-oriented approach. Its product portfolio includes PSA nitrogen generators, PSA oxygen generators, membrane nitrogen and oxygen generators, nitrogen purification units, and ammonia decomposition hydrogen purification units. This experience is relevant when compressed air is part of a larger gas generation or purification system.

For example, a plant may use the low-pressure compressor to supply a gas generator, pneumatic control system, or production process while also requiring filtration, drying, nitrogen generation, or oxygen generation. A supplier familiar with several connected technologies may be better positioned to coordinate the complete utility system.

12. Industrial Applications

12.1 Pneumatic Conveying

Pneumatic conveying systems transport powders, granules, and other materials through pipelines using air. Many conveying applications prioritize air volume and stable flow rather than high pressure. A low-pressure compressor can provide an appropriate operating source while reducing the need for pressure reduction from a higher-pressure system.

Stable air delivery is important because fluctuating air velocity may affect material movement, pipeline pressure, and production continuity. Variable-speed control can help the compressor respond to changing conveying demand, provided the system is properly configured.

12.2 Textile Manufacturing

Textile machinery often uses compressed air for cleaning, yarn handling, weaving, spinning, control systems, and air-jet processes. These applications may operate for long periods and can be sensitive to dust and fibers. The compressor’s cooler should therefore be inspected regularly, and the intake should be protected from excessive contamination.

Low noise can also be valuable in textile facilities where multiple machines operate simultaneously. The quiet centrifugal fan and variable-speed operation can help support a more manageable acoustic environment.

12.3 Food Processing and Packaging

Compressed air may be used for packaging machinery, pneumatic valves, conveying, cleaning support, and automation. Where air may contact packaging or products, users must specify appropriate downstream treatment. The compressor’s low oil carryover design can reduce the initial contamination burden, but the final air quality must be achieved through a complete filtration and drying system.

12.4 Automotive Manufacturing

Automotive production plants use compressed air for assembly tools, pneumatic actuators, material handling, cleaning, and process equipment. Air demand can change across shifts and production stages. Variable-speed control may be useful where the load is not constant.

Reliable monitoring is also important in automotive plants because an interruption to compressed air can affect multiple production stations. The touchscreen controller can assist operators in identifying operating conditions and responding to alarms.

12.5 Heat Treatment

Heat treatment facilities use air and other gases in controlled production environments. Low-pressure compressed air may support pneumatic equipment, cooling or handling systems, and auxiliary processes. Because the surrounding temperature may be elevated, the compressor room must be designed with sufficient ventilation and heat removal capacity.

12.6 Electronics and SMT Production

Surface-mount technology and electronics manufacturing use compressed air for pick-and-place machinery, pneumatic control, cleaning, and automation. These applications may require stable pressure and low contamination. The compressor should be paired with suitable dryers and filters to control moisture, particles, and oil aerosols.

13. Installation and System Design Guidance

Correct installation is essential to achieving the expected performance of any compressor. The equipment should be installed on a stable foundation with adequate clearance for ventilation, inspection, and maintenance. The installation room should be clean, dry, and sufficiently ventilated.

The side intake and top exhaust should not be obstructed. If the top exhaust is connected to a duct, the duct should be designed to avoid excessive back pressure. Hot exhaust air should not be allowed to return directly to the compressor intake. Where several compressors operate in the same room, the ventilation plan should account for the combined heat load.

Electrical supply requirements should be reviewed before installation. Voltage, frequency, phase arrangement, protection devices, cable sizing, grounding, and local electrical regulations must be considered. Variable frequency systems can have specific requirements related to electromagnetic compatibility and protective devices.

Compressed air piping should be sized to limit pressure drop. The air receiver, isolation valves, drains, filters, dryers, and distribution network should be selected according to flow, pressure, air quality, and operating conditions. The compressor should not be forced to operate at a higher pressure simply to compensate for an undersized or poorly designed distribution system.

Drainage is another important consideration. Oil-injected compressors and downstream air treatment systems may produce condensate. Condensate should be collected and handled according to local environmental requirements. Automatic drains should be inspected to ensure that they operate correctly.

14. Maintenance and Life-Cycle Management

Regular maintenance helps protect efficiency and reliability. The maintenance schedule should be based on operating hours, ambient conditions, lubricant type, load profile, and manufacturer recommendations. Key tasks may include checking oil level and condition, replacing oil and filters, inspecting the oil separator, cleaning the cooler, checking fan operation, verifying electrical connections, and reviewing controller alarms.

The air intake should be kept clean. A restricted intake can reduce performance and increase the workload on the compressor. In dusty, textile, or outdoor environments, the intake filter may require more frequent inspection.

Oil quality affects lubrication, sealing, temperature control, and separation performance. Mixing incompatible oils or extending oil service intervals beyond recommended limits can create deposits, increased viscosity, poor separation, or component damage. The correct lubricant should always be used.

The oil separator is a wear and service component. Its condition influences oil carryover and pressure loss. An increase in oil content, a rise in pressure differential, or an unexplained change in compressor behavior may indicate that the separator should be inspected.

The cooler and fan should be checked for dust, fibers, oil deposits, vibration, and unusual sound. A clean cooler allows better heat transfer, while a properly functioning fan supports stable temperature control. Because the fan is variable speed, operators should also confirm that it responds correctly to changes in load and temperature.

Controller information should be included in routine maintenance. Alarm history, operating hours, temperature trends, and pressure behavior can help identify developing problems. Maintenance teams should document inspections and corrective actions so that operating trends can be reviewed over time.

15. Total Cost of Ownership

The purchase price of a compressor is only one part of its economic value. Electricity, maintenance, oil, filters, downtime, installation, air treatment, and eventual replacement all contribute to total cost of ownership. For many industrial users, energy consumption is the largest long-term expense.

The BHLV-Z Series addresses life-cycle cost through several design elements. The low-pressure architecture avoids unnecessary compression where the application requires only 2 to 5 bar. The IE5 motor is designed for high electrical efficiency. Variable-speed control can reduce partial-load waste. Variable-speed fan control can limit auxiliary power consumption. The cooling and oil separation systems support stable operation and help protect components.

A proper financial evaluation should compare annual energy consumption rather than only rated motor power. The calculation should include actual operating pressure, average flow, hours per year, electricity tariff, load variation, and expected maintenance. Leak reduction should also be included because compressed air leaks can consume a significant amount of compressor output.

Users should consider whether the compressor can operate efficiently at the facility’s normal demand. If demand is highly variable, a combination of variable-speed and fixed-speed units may be appropriate. If demand is consistently low-pressure and high-volume, a dedicated low-pressure compressor may offer a better match than a general-purpose high-pressure system.

16. Selection Criteria for Buyers

Before selecting a model, the buyer should identify the required working pressure, average flow, peak flow, daily operating hours, ambient temperature, installation altitude, air quality, available power supply, and room ventilation conditions.

The working pressure range of this series is 2 to 5 bar. The selected pressure should be based on the actual point-of-use requirement plus a reasonable distribution allowance. Excessive pressure margins increase energy consumption. However, insufficient pressure can cause production instability, so the system should be evaluated as a whole.

Air capacity should be selected based on measured demand rather than connected equipment nameplates alone. A demand profile can reveal peak consumption, average consumption, idle periods, and leakage. This information helps determine whether one compressor, several parallel compressors, or a combination of compressor sizes is most suitable.

Air quality requirements should be clearly defined. If the compressed air is used for general automation, standard filtration may be sufficient. If it contacts food, pharmaceuticals, electronics, coatings, or sensitive surfaces, additional drying and filtration may be necessary.

Environmental conditions should also be considered. High temperature, high humidity, dust, textile fibers, corrosive gases, and poor ventilation can affect compressor performance. The purchaser should communicate these conditions to the supplier before final selection.

17. Why an Integrated Supplier Matters

A compressor is often part of a larger gas utility system. A supplier that works across gas separation, purification, and compression technologies can help customers coordinate equipment more effectively. The company’s portfolio includes nitrogen and oxygen generation systems, membrane gas generators, nitrogen purification units, and hydrogen purification equipment.

This broader capability can be useful for projects requiring compressed air alongside industrial gases. For example, a production facility may need a low-pressure compressor for process air, a PSA nitrogen generator for inerting, and purification equipment for a controlled-atmosphere application. Coordinating these systems can simplify engineering communication and after-sales support.

An integrated supplier can also help review the relationship between compressor performance and gas-generation requirements. Air quality, pressure stability, flow capacity, filtration, and dryer selection may affect the operation of downstream gas equipment. System coordination at the design stage can prevent mismatched capacities and unnecessary operating costs.

18. Technical Summary

Product Type	Low-pressure oil-injected rotary screw air compressor
Compression Method	Dedicated two-stage compression
Motor Type	IE5-efficiency permanent magnet synchronous motor
Variable-Speed Design	Dual variable frequency control for the air end and fan
Working Pressure	2 to 5 bar, or 29.0 to 72.5 psig
Air Capacity	1.8 to 75 cubic meters per minute, or approximately 63.6 to 2,648.6 cfm
Motor Power	22 to 280 kW, or approximately 30.0 to 380.7 hp
Oil Separation	Low-pressure oil-gas separation system designed for minimal oil content
Cooling System	Enhanced cooler with side intake and top exhaust
Fan Configuration	Quiet centrifugal fan with variable-speed control
Thermal Management	Hot-and-cold-zone isolation system
Control Interface	Touchscreen microcomputer controller with real-time status monitoring

19. Frequently Asked Questions

19.1 What pressure range does the compressor cover?

The compressor is designed for working pressures from 2 to 5 bar, equivalent to approximately 29.0 to 72.5 psig. The correct model should be selected according to the actual process pressure and required flow.

19.2 Why use a low-pressure compressor instead of a standard high-pressure compressor?

A low-pressure compressor is designed to produce air within the required pressure range. If a process only needs low pressure, using a high-pressure compressor and reducing the pressure downstream may consume more energy than necessary. A dedicated low-pressure system can provide better pressure matching.

19.3 What is the purpose of two-stage compression?

Two-stage compression divides the total compression work between two stages. This can help manage thermal and mechanical conditions and support efficient operation within the intended low-pressure range.

19.4 What does the IE5 motor contribute?

The IE5 permanent magnet synchronous motor is designed for very high efficiency. It can reduce motor-related electrical losses and works effectively with variable-speed control when the compressor is correctly selected and operated.

19.5 What does dual variable frequency control mean?

It means that the air end and cooling fan have independent variable-speed control. The air end adjusts compressed air production, while the fan adjusts cooling airflow according to operating conditions.

19.6 Is the compressed air oil-free?

No. This is an oil-injected rotary screw compressor. Oil is used inside the compression system for lubrication, sealing, and cooling. The compressor includes a low-pressure oil-gas separation system designed to minimize oil content, but applications with strict air purity requirements should also use suitable downstream filtration and drying equipment.

19.7 Is the compressor suitable for food or electronics applications?

It can support compressed air systems in food processing, packaging, electronics, and other industries, but the final suitability depends on the required air quality. Users should specify the applicable cleanliness, moisture, and oil limits and install the necessary downstream treatment equipment.

19.8 How can noise be controlled?

The compressor uses a quiet centrifugal fan configuration and variable-speed fan control. Actual site noise depends on the compressor model, room structure, piping, ducting, foundation, and nearby equipment. Correct installation and vibration management remain important.

19.9 What maintenance is required?

Typical maintenance includes checking and replacing lubricant, oil filters, air filters, and separator elements; cleaning the cooler; inspecting the fan; checking electrical connections; reviewing controller alarms; and verifying operating temperatures and pressures. Maintenance intervals should follow the product documentation and site conditions.

19.10 Can the product be used with gas generation equipment?

It can be used as part of a larger industrial gas system when the pressure, flow, air quality, and control requirements are correctly matched. The manufacturer also supplies gas separation and purification equipment, allowing customers to discuss integrated system requirements.

19.11 What should be checked before ordering?

Buyers should provide the required pressure, average and peak flow, operating hours, ambient temperature, installation conditions, power supply, air quality requirements, and intended application. These details help determine the appropriate model and supporting equipment.

19.12 Does variable speed eliminate all energy waste?

No. Variable-speed control can reduce certain forms of partial-load waste, but total system efficiency also depends on correct sizing, pressure settings, leakage control, air treatment pressure drop, maintenance, and operating practices.

20. Conclusion

The low-pressure permanent magnet variable-speed oil-injected rotary screw air compressor is designed for industrial users who require substantial air volume at moderate pressure. Its dedicated low-pressure two-stage compression system avoids treating low-pressure service as a secondary operating condition. Instead, the compressor is structured around the needs of applications that operate between 2 and 5 bar.

The IE5 permanent magnet synchronous motor provides a high-efficiency drive foundation, while dual variable frequency control allows independent adjustment of air production and cooling airflow. The low-pressure oil-gas separation system supports reduced oil carryover, and the enhanced cooler, side-intake and top-exhaust airflow, hot-and-cold-zone isolation, and quiet centrifugal fan contribute to thermal and acoustic management.

From a user perspective, the most important advantage is the combination of technologies. Energy efficiency, stable output, air quality, cooling, noise, monitoring, and maintenance are addressed as parts of one system. Compared with a conventional high-pressure fixed-speed compressor used for a low-pressure process, the product may offer better pressure matching, improved partial-load control, lower auxiliary consumption, and a more suitable operating profile.

The manufacturer strengthens this product offering through integrated research and development, design, production, installation, and after-sales service. Its standardized workshop, technical team, gas equipment portfolio, and experience in industrial purification systems provide a foundation for complete project support. With correct selection, installation, operation, and maintenance, the compressor can serve as an efficient and dependable air source for pneumatic conveying, textile production, food packaging, automotive manufacturing, heat treatment, electronics, and other industrial applications.

References

1. International Electrotechnical Commission, International Standard for Rotating Electrical Machines: Efficiency Classes of Line-Operated AC Motors.

2. International Organization for Standardization, Compressed Air Contaminants and Air Purity Classification.

3. International Organization for Standardization, Compressed Air Energy Efficiency and Performance Evaluation Practices.

4. Compressed Air and Gas Institute, Rotary Screw Compressor Engineering and Application Guidance.

5. U.S. Department of Energy, Compressed Air System Best Practices and Energy Assessment Principles.

6. European Commission, Ecodesign and Energy Efficiency Principles for Electric Motors and Variable-Speed Drives.

7. Industrial compressed air system engineering manuals covering compressor sizing, pressure management, air treatment, condensate handling, and preventive maintenance.

Product: Low-Pressure Permanent Magnet VSD Oil-Injected Rotary Screw Air Compressor
