Industry Knowledge: Why Purity Consistency Matters More Than Peak Purity in Electronics
The requirements above — cleanroom blanketing, hazardous chemical storage, leak testing, solder joint protection — all depend on nitrogen doing one of two things: excluding oxygen, or excluding moisture. The sections below explain the mechanism behind each, and why on-site generation addresses a purity-consistency problem that cylinder gas struggles with structurally, not just on cost.
| Scenario (as stated on this page) | What nitrogen is actually doing |
|---|---|
| Cleanrooms & fresh air systems | Maintaining a slight positive pressure keeps unfiltered outside air from infiltrating through door gaps and seams — nitrogen's role is sustaining that pressure differential continuously, not the gas reacting with anything inside the room |
| Hazardous chemical & solvent warehouses | Combustion needs oxygen; displacing oxygen below the combustible threshold prevents ignition even where solvent vapor is present, rather than relying on ventilation alone |
| Equipment leak testing | Dry nitrogen avoids the condensation that ordinary compressed air can introduce into a pressure-decay test, which is what leak test accuracy depends on |
| Solder joint / PCB welding | Excluding oxygen at the molten solder joint prevents oxidation that otherwise causes poor wettability and rework |
Scenarios and outcomes above are as published on this page; the mechanism explanations are added here.
Why 5N–6N Purity Is Structurally Harder to Guarantee from Cylinders
The page notes that cylinder gas hardly maintains 5N–6N (99.999%–99.9999%) purity stably — this isn't primarily a manufacturing quality issue with the gas itself, but a consequence of how cylinder gas is delivered. Every cylinder swap introduces a new connection point, and each one is a potential path for trace moisture or ambient air to enter before the joint is fully purged. A continuously operating on-site nitrogen generator feeding a sealed distribution line never goes through that disconnect-reconnect cycle, which is the structural reason it holds a stated purity more consistently over time than a cylinder farm being swapped daily.

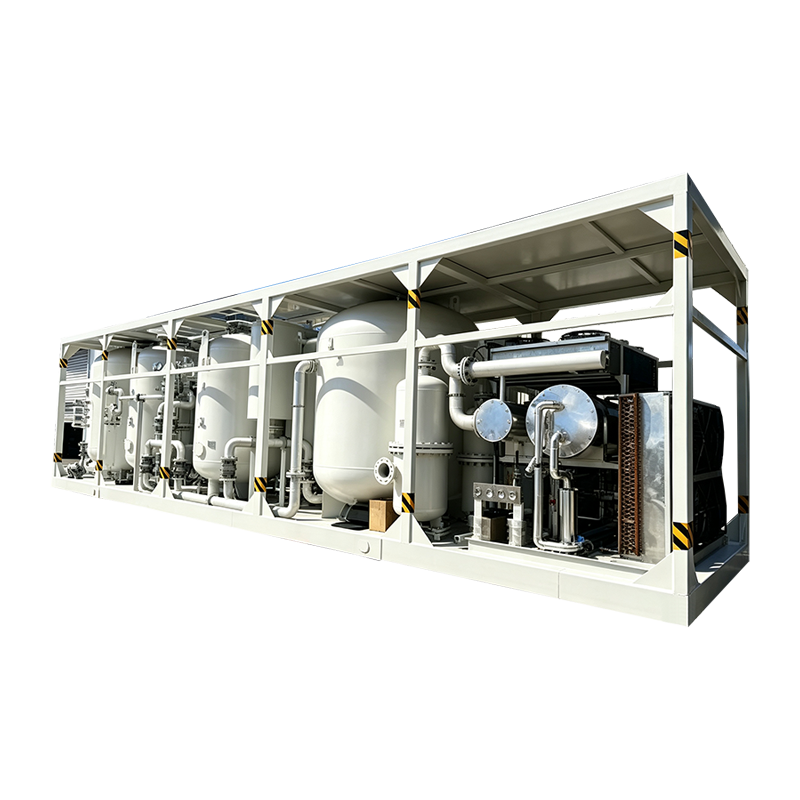

What the BHM Membrane Helium Recovery Unit Actually Solves
Helium is used in several semiconductor and optical fiber processes — as a purge, cooling, or carrier gas — and is both expensive and subject to periodic global supply shortages, since it is extracted from natural gas fields rather than separated from air. Venting spent helium after a single pass wastes an increasingly costly input. A membrane helium recovery unit instead captures and purifies helium already used in the process for reuse, which is a distinct function from generating a gas from air in the first place — it addresses the cost and supply-risk side of helium use rather than the purity-generation side that the nitrogen and oxygen equipment on this page handles.
A Note on Argon and Rare Gases
This page's summary mentions argon and rare gases alongside nitrogen and oxygen. It's worth being precise about what non-cryogenic equipment can and cannot do: PSA, VPSA, and membrane systems separate gas based on differences in adsorption or permeation rate, and argon's behavior is close enough to oxygen's that it cannot be separated this way — argon is produced almost exclusively by cryogenic air distillation. Where an electronics process specifically requires argon, it is typically sourced separately from nitrogen and oxygen generation rather than produced by the same on-site equipment; helium, similarly, is recovered rather than generated from air, as described above.
Frequently Asked Questions
Can a single on-site system supply both cleanroom blanketing and leak testing?
Yes, provided the system is sized for the combined flow rate and set to the highest purity requirement among the connected uses — an air separation unit feeding a shared distribution line is the common configuration, rather than a dedicated generator per use case.
Is the 30–50% cost reduction figure on this page the same as the figure quoted for other industries?
No — this page states a 30–50% operational cost reduction for large electronics factories specifically. Other applications on this site quote their own figures for their own process and scale, and shouldn't be assumed to be interchangeable.
Does Zhejiang Baiao Gas Equipment Co., Ltd. supply argon or rare gas generation for chip fabrication?
No — argon and most rare gases require cryogenic separation, which is outside the PSA, VPSA, and membrane technologies the company manufactures. The BHM Membrane Helium Recovery Unit recovers already-used helium rather than generating it from air, which is a different function.
