A complete technical guide to piston type air compressors — working principles, types, selection, and applications.

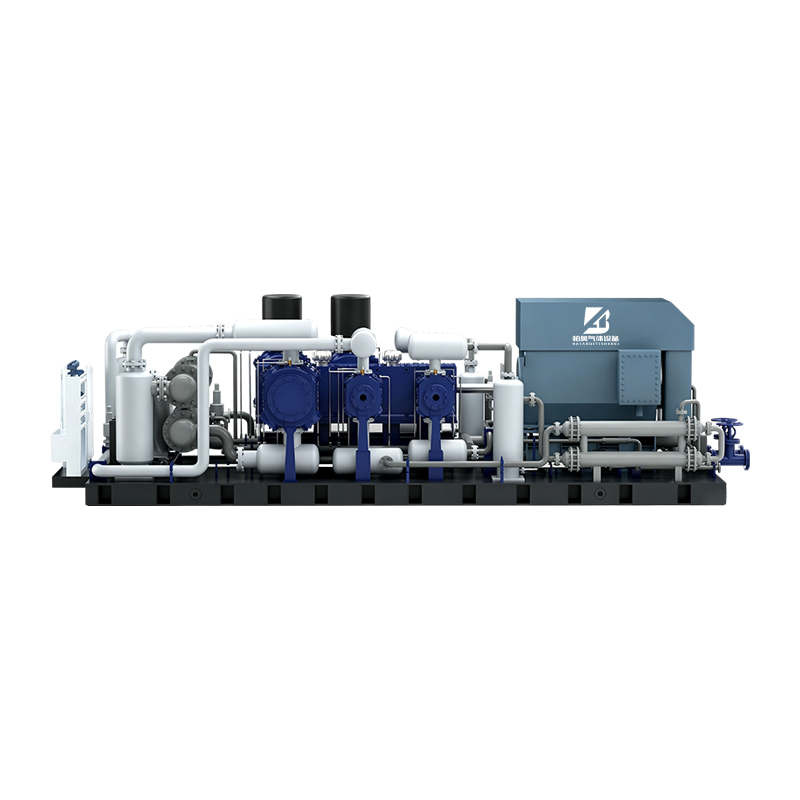

A piston type air compressor is a positive displacement compressor that uses reciprocating pistons driven by a crankshaft to compress air. It is one of the oldest and most widely used compressor designs, known for its reliability, durability, and ability to deliver high pressure at relatively low cost.
Piston compressors are the backbone of many industrial operations, providing compressed air for pneumatic tools, spray painting, packaging equipment, and countless other applications. Their simple design and robust construction make them a popular choice for workshops, factories, and service centers worldwide.
Single-stage max pressure
Two-stage max pressure
Typical service life
Available for sensitive applications
Content
A piston type air compressor is a positive displacement machine that compresses air by reducing its volume through the reciprocating motion of a piston inside a cylinder. The piston moves back and forth, drawing air into the cylinder during the intake stroke and compressing it during the compression stroke.
This type of compressor is characterized by its simple mechanical design, consisting of a cylinder, piston, connecting rod, crankshaft, and valve system. The piston is driven by an electric motor or internal combustion engine through a crankshaft mechanism, converting rotational motion into linear motion.
Piston compressors are available in both single-stage and two-stage configurations, with the number of stages determining the maximum pressure that can be achieved. Single-stage compressors are suitable for pressures up to 10 bar, while two-stage compressors can deliver pressures up to 20 bar or more.
The fundamental advantage of the piston design lies in its ability to generate high pressures efficiently. By using multiple stages with intercooling, the compressor can achieve pressures that would be impractical with a single-stage design. This makes piston compressors particularly well-suited for applications requiring high-pressure air, such as tire manufacturing, pressure testing, and pneumatic conveying systems.
The operation of a piston type air compressor follows a four-stroke cycle that repeats continuously during operation.
The piston moves downward, creating a vacuum. The intake valve opens, allowing atmospheric air to enter the cylinder.
The piston moves upward, compressing the air. Both valves close as pressure and temperature increase.
When cylinder pressure exceeds line pressure, the exhaust valve opens and compressed air is discharged.
In two-stage designs, air passes through an intercooler between stages, improving efficiency and reducing temperature.
The cylinder is the main body where compression takes place, typically made from cast iron or aluminum. The piston, equipped with rings, moves inside and provides the compression force.
The crankshaft converts rotary motion into reciprocating motion. The connecting rod links the crankshaft to the piston, transmitting the driving force.
Intake and exhaust valves control airflow. Reed or plate valves open and close automatically based on pressure differentials.
Finned cylinders, water jackets, or intercoolers remove heat generated during compression, maintaining efficiency and component life.
Compresses air in one stroke to final pressure. Suitable for pressures up to 10 bar. Common in workshops, tire inflation, and general-purpose pneumatic applications.
Compresses air in two stages with intercooling. Achieves pressures up to 20 bar. Used in heavy-duty industrial applications requiring higher pressure.
Uses oil for lubrication, sealing, and cooling. Offers longer service life and quieter operation. Requires regular oil changes and maintenance.
Delivers 100% oil-free air using self-lubricating materials. Essential for food processing, pharmaceutical manufacturing, and painting applications.
| Characteristic | Single-Stage | Two-Stage | Oil-Free |
|---|---|---|---|
| Maximum pressure | 10 bar (150 psi) | 20 bar (300 psi) | 10 bar (150 psi) |
| Efficiency | Moderate | High | Moderate |
| Air quality | Oil-lubricated (oil present) | Oil-lubricated (oil present) | 100% oil-free |
| Maintenance | Regular oil changes | Regular oil changes | Minimal maintenance |
| Cost | Low to moderate | Moderate | Higher |
Piston type air compressors are used across a wide range of industries and applications.
Powering pneumatic tools, machine tools, clamping devices, and production equipment in workshops and factories.
Operating tire inflation, spray painting guns, pneumatic lifts, cleaning equipment, and diagnostic tools.
Powering jackhammers, pneumatic drills, concrete spraying, and sandblasting equipment on job sites.
Oil-free compressors for packaging, bottling, and food processing where oil contamination must be avoided.
Oil-free compressors providing clean, dry air for manufacturing and hospital pneumatic systems.
Powering crop spraying, livestock handling, grain handling, and milking machine equipment.
Calculate total compressed air consumption of all tools and equipment operated simultaneously.
Identify maximum pressure required by the most demanding application.
Select single-stage for pressures up to 10 bar, two-stage for higher pressures or improved efficiency.
Determine if oil-free air is required for the application.
Consider available electrical supply or fuel for engine-driven compressors.
Consider floor space, ventilation, and noise requirements.
Choosing the right piston type air compressor requires careful consideration of your air demand and operating conditions.
Evaluate pressure requirements, duty cycle, and air quality needs to select the most suitable compressor for your industrial application.
