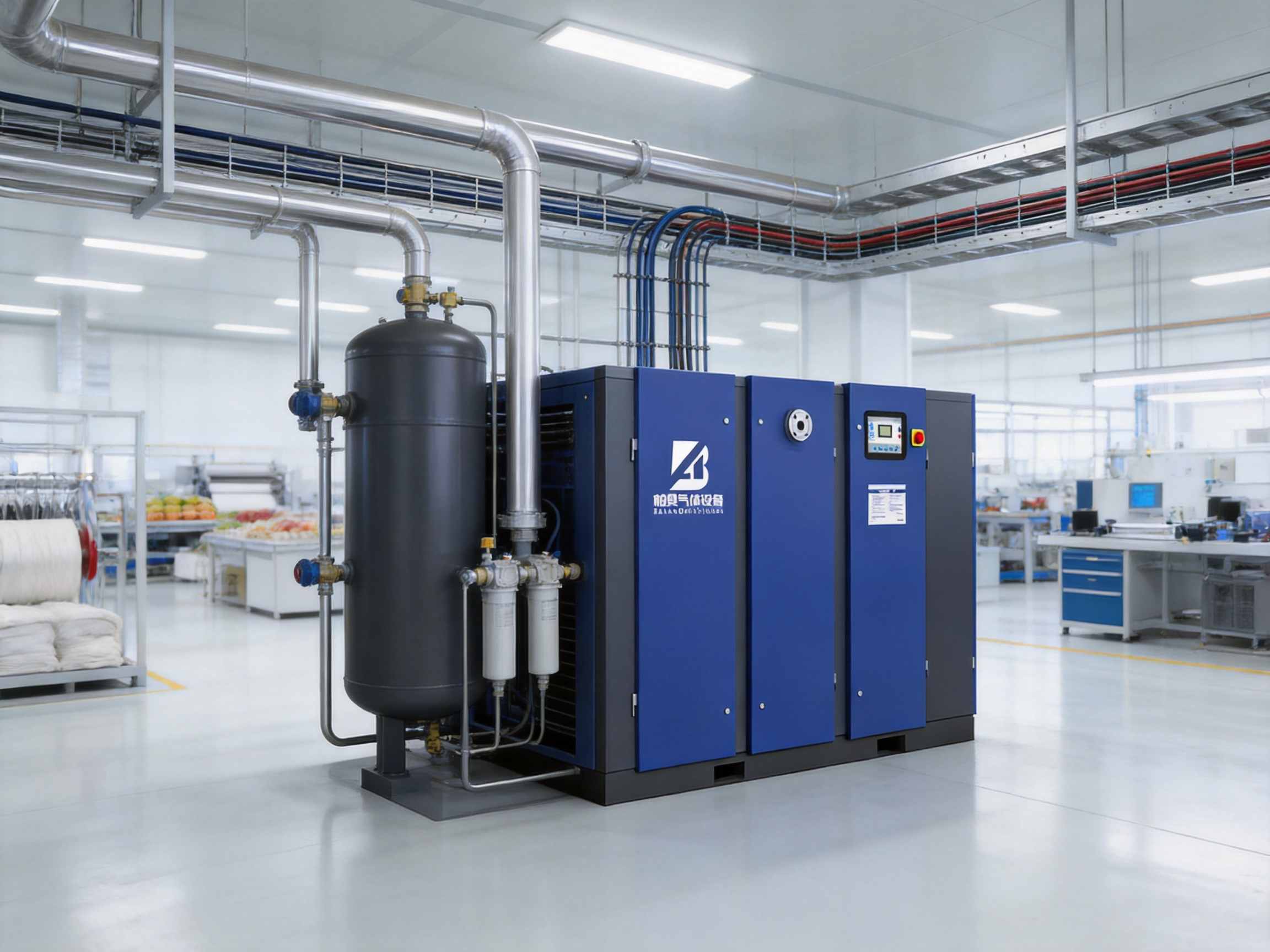

Low-Pressure Permanent Magnet VSD Oil-Injected Rotary Screw Air Compressor: Efficient Air Supply for Modern Industry

Industrial production increasingly depends on compressed air that is stable, clean, energy-efficient, and available at the exact pressure required by the process. In applications such as textile manufacturing, food processing, automotive production, heat treatment, SMT electronics, and gas-generation systems, compressed air is not simply a utility. It is an essential part of production continuity, equipment protection, product quality, and operating cost control.

The low-pressure permanent magnet VSD oil-injected rotary screw air compressor is designed for industrial users that require large volumes of air at relatively low working pressure. The BHLV-Z Series combines two-stage compression, permanent magnet synchronous motor technology, variable-speed control, low-pressure oil-gas separation, and an integrated cooling system. This combination enables the compressor to provide a more closely matched air supply while reducing the energy losses associated with conventional compressor operation.

With a working pressure range of 2 to 5 bar, an air capacity range of 1.8 to 75 cubic meters per minute, and motor power from 22 to 280 kW, the series is suitable for a broad range of low-pressure industrial applications. It is particularly appropriate where the production process requires continuous airflow but does not require the high discharge pressures associated with standard industrial air compressors.

This article examines the compressor’s operating principles, technical configuration, application value, manufacturing strengths, control system, maintenance considerations, and advantages compared with conventional fixed-speed or single-stage compressor designs.

Low-Pressure Permanent Magnet VSD Oil-Injected Rotary Screw Air Compressor

1. The Role of Low-Pressure Compressed Air in Industrial Production

Many industrial facilities use compressed air at pressures significantly below the common range of general-purpose factory air systems. Examples include pneumatic conveying, aeration, textile processes, glass production, wastewater treatment, packaging, electronic component manufacturing, and certain gas separation and purification systems.

When a facility uses a conventional compressor designed for a much higher pressure than the process actually requires, the compressor may consume unnecessary energy. Compressing air to a higher pressure generally requires more work from the motor. If the air is subsequently reduced through a pressure-regulating valve, the additional compression energy is not recovered. In this situation, the plant pays for pressure that its process does not need.

A dedicated low-pressure compressor addresses this mismatch by designing the air end, compression stages, control program, cooling system, and oil separation system around low-pressure operation. The result can be a more efficient and more stable compressed-air source for processes that operate in the 2 to 5 bar range.

Low-pressure applications also benefit from appropriate airflow control. Demand can vary during different production shifts, between operating lines, or according to the status of pneumatic equipment. A compressor that continuously operates at full speed during periods of reduced demand may create avoidable power consumption. Variable-speed technology allows the compressor to adjust its output according to actual demand.

1.1 Typical Low-Pressure Applications

The low-pressure permanent magnet VSD oil-injected rotary screw air compressor can be considered for applications such as pneumatic conveying, air agitation, textile machinery, packaging lines, low-pressure process air, aeration systems, and selected air separation or gas purification equipment.

In gas-generation plants, compressed air is often supplied to nitrogen generators, oxygen generators, membrane separation systems, purification units, and related pretreatment equipment. The exact pressure and airflow requirements depend on the process design. A dedicated low-pressure compressor can help provide a suitable air source while avoiding the inefficiency of using a high-pressure compressor followed by extensive pressure reduction.

In textile plants, stable low-pressure airflow may be needed for air-jet equipment, cleaning systems, and other pneumatic operations. In food and packaging facilities, compressors may serve filling, conveying, sorting, and packaging machinery. In electronics manufacturing, clean and stable compressed air supports automated equipment and precision pneumatic components.

The compressor must always be selected according to the actual process requirements. Air quality, pressure stability, temperature, ambient conditions, duty cycle, and required redundancy should be evaluated together rather than choosing equipment on motor power alone.

2. Product Overview and Main Technical Parameters

The BHLV-Z Series is a low-pressure, oil-injected, rotary screw air compressor using a permanent magnet synchronous motor and a two-stage compression configuration. The system is developed specifically for low-pressure service rather than being a standard high-pressure compressor operated outside its ideal design range.

Its principal technical parameters are summarized below.

Parameter	Metric Range	Imperial Range
Working pressure	2 to 5 bar	29.0 to 72.5 psig
Air capacity, FAD	1.8 to 75 m³/min	63.6 to 2,648.6 cfm
Motor power	22 to 280 kW	30.0 to 380.7 hp
Compression configuration	Two-stage rotary screw compression	Designed for low-pressure service
Motor technology	IE5-efficiency permanent magnet synchronous motor	Variable-speed operation
Cooling arrangement	Enhanced cooler with side intake and top exhaust	Hot and cold zone isolation
Fan control	Variable-frequency centrifugal fan	Demand-responsive cooling

The wide capacity range makes the series applicable to both medium-sized process systems and large industrial air networks. However, the final model should be selected after reviewing the required flow at the operating pressure, the plant’s load profile, the ambient temperature, and the desired system arrangement.

Free air delivery, or FAD, is an important selection parameter. It represents the delivered air volume under specified reference conditions. Users should compare compressors using consistent measurement standards and should confirm whether the stated airflow corresponds to the intended operating pressure, inlet condition, and ambient environment.

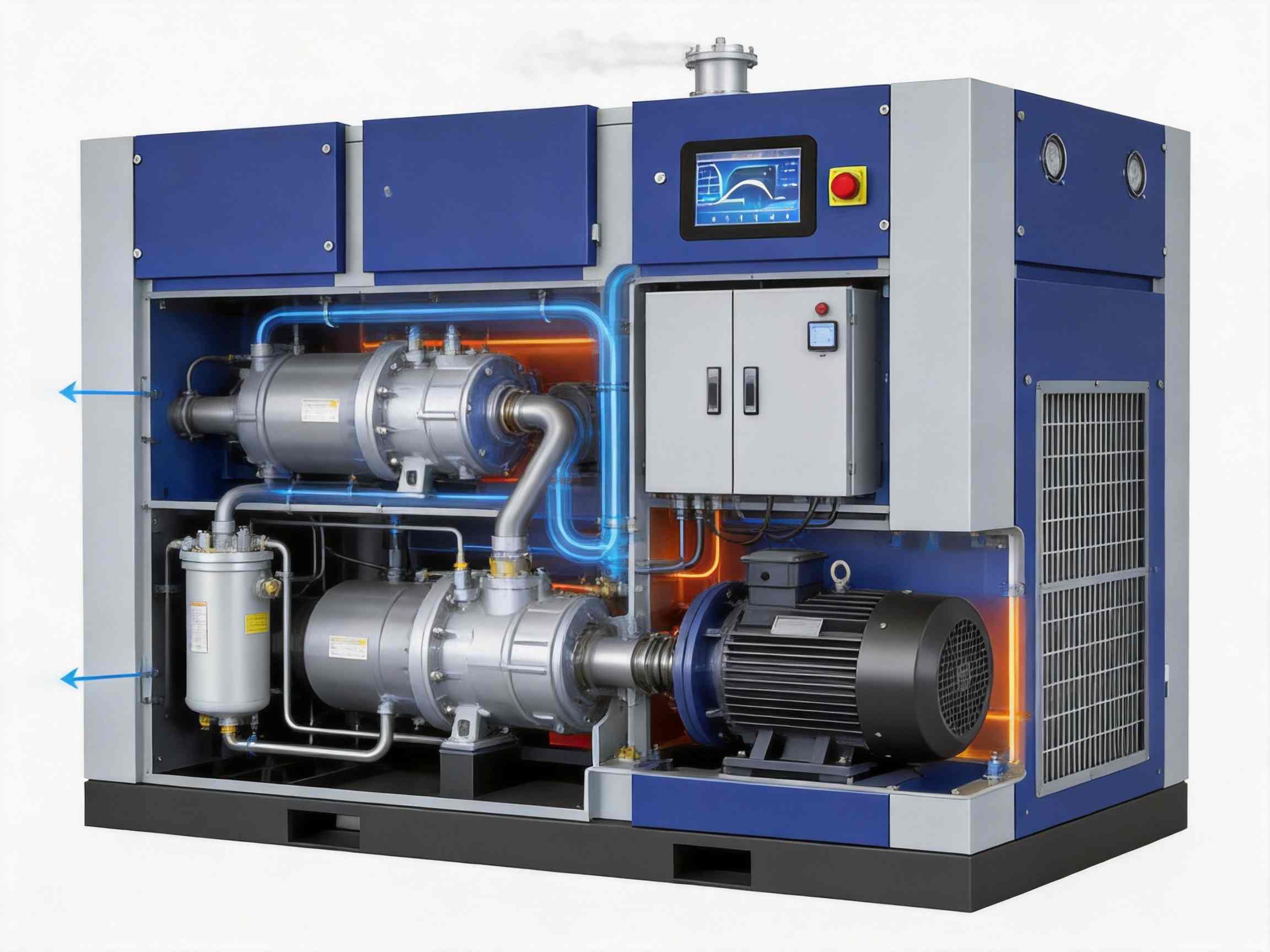

3. Two-Stage Compression for Low-Pressure Efficiency

The compressor uses a specially designed two-stage compression system and a low-pressure dedicated air end. In a two-stage rotary screw compressor, the compression process is divided between two compression elements. Air is compressed in the first stage, cooled or conditioned as required by the system design, and then compressed further in the second stage to reach the final discharge pressure.

Dividing the compression process can improve the balance of compression work and help control discharge temperature. For low-pressure operation, the compression stages can be designed around the actual pressure ratio rather than forcing a conventional high-pressure air end to operate inefficiently at a low pressure.

A dedicated low-pressure air end is particularly important because screw rotor profiles, internal clearances, oil injection, pressure ratios, and operating speeds all influence compressor performance. The air end is the core of the machine. Its design determines how effectively mechanical power is converted into compressed air and how much heat is generated during the process.

3.1 Advantages Compared with Single-Stage Operation

Compared with a conventional single-stage configuration, two-stage compression can offer several potential advantages in a low-pressure industrial system. These include improved compression balance, reduced stress on each compression stage, better temperature management, and the possibility of more efficient operation across the intended pressure range.

Because the pressure increase is distributed, each stage does not need to perform the entire compression task. This arrangement can support smoother operation and help the compressor maintain stable performance under continuous-duty conditions. The exact efficiency benefit depends on the operating pressure, airflow, ambient temperature, motor speed, oil system, and control strategy.

Two-stage compression may also provide greater flexibility when the compressor operates across a range of pressure and flow requirements. A plant that experiences changing production demand can benefit from the combined effect of two-stage compression and variable-speed control.

Users should distinguish between a compressor designed specifically for low pressure and a standard compressor that has simply been modified through control settings. The BHLV-Z Series is described as using a low-pressure dedicated air end and a specially designed two-stage system, which supports more appropriate operation in low-pressure service.

4. Permanent Magnet Synchronous Motor Technology

The compressor is equipped with an IE5-efficiency permanent magnet synchronous motor. Permanent magnet motors use permanent magnetic material to create the rotor magnetic field, reducing the need for rotor current and minimizing certain electrical losses associated with conventional induction motors.

The IE5 efficiency classification represents a very high motor-efficiency level within international motor efficiency standards. In a compressor, motor efficiency is important because the motor operates for long periods and may represent a substantial portion of the total energy consumption of the system.

Permanent magnet motor technology is particularly valuable when combined with variable-speed operation. The motor can operate over a controlled speed range while maintaining efficient torque production. Instead of running continuously at one fixed speed and relying on unloading or throttling, the compressor can adjust its rotational speed to better match the required airflow.

4.1 Benefits During Partial-Load Operation

Industrial compressed-air demand is rarely constant throughout the day. Production lines may start and stop, equipment may operate intermittently, and different shifts may have different airflow requirements. During low-demand periods, a fixed-speed compressor may unload, cycle, or continue operating in a way that consumes power without producing an equivalent amount of useful compressed air.

A variable-speed permanent magnet compressor can reduce speed when demand falls and increase speed when demand rises. This approach can help reduce unnecessary energy use while maintaining pressure stability. The actual savings depend on the load profile and the difference between the compressor’s operating range and the plant’s demand pattern.

Another advantage is reduced mechanical stress during start-up and changes in output. A controlled acceleration and deceleration sequence can be less abrupt than repeated direct-on-line starting. This may support longer service life for certain drive components, although correct installation and maintenance remain essential.

4.2 Why Motor Selection Matters

Motor efficiency should not be considered in isolation. A highly efficient motor must be integrated with an appropriately sized air end, inverter, cooling system, oil circuit, and control system. If any major component is poorly matched, the overall system may not deliver the expected performance.

The product’s use of an IE5 permanent magnet synchronous motor is therefore part of a broader system approach. The air end, motor, fan, and control system are designed to work together so that the compressor can respond to changing process requirements with a balanced energy profile.

5. Dual Variable-Frequency Control

One of the key characteristics of the BHLV-Z Series is its dual variable-frequency design. Variable-frequency control is applied not only to the main air-end drive but also to the cooling fan. This means the compressor can regulate both compressed-air production and cooling airflow according to operating conditions.

In a conventional compressor, the main motor may be controlled while the cooling fan runs at a fixed speed. A fixed-speed fan can consume more power than necessary during periods of low compressor load or moderate ambient temperature. It may also create unnecessary noise and airflow.

With a variable-frequency fan, cooling capacity can be adjusted according to oil temperature, discharge temperature, ambient conditions, and compressor loading. The fan can run at a lower speed when full cooling capacity is not required and increase speed when the compressor is operating under a heavier thermal load.

5.1 Energy Management

The combined control of the air end and fan helps improve the overall energy management of the compressor package. The main motor responds to airflow demand, while the fan responds to cooling demand. This avoids treating these two loads as fixed and independent components.

Energy consumption is influenced by several factors, including operating pressure, airflow, motor speed, ambient temperature, intake restriction, cooler condition, oil condition, and pressure losses in the downstream system. The dual variable-frequency design addresses two important contributors: compressed-air production and cooling power.

Although a variable-frequency drive does not eliminate energy consumption, it can help reduce waste associated with overproduction and excessive fan operation. For facilities with fluctuating demand, this type of control may provide a stronger operating advantage than a fixed-speed package.

5.2 Stable Pressure Control

Pressure stability is important for pneumatic equipment and process systems. Excessive pressure variation can affect product quality, increase leakage, cause equipment malfunction, or lead operators to set the system pressure higher than necessary as a precaution.

A variable-speed compressor can adjust output more continuously than a simple load-unload compressor. The controller monitors system pressure and other operating parameters, then changes compressor speed to maintain the target range. The response is influenced by the size of the air receiver, the configuration of the pipe network, the control settings, and the dynamics of the process.

Stable pressure also helps users optimize the entire compressed-air system. When the supply pressure is controlled accurately, the plant may be able to reduce artificial demand and limit the use of unnecessary pressure margins.

6. Low-Pressure Oil-Gas Separation System

The compressor uses an oil-injected rotary screw process. Oil is introduced into the compression chamber to provide sealing, lubrication, and cooling. After compression, the air-oil mixture passes through an oil-gas separation system so that most of the oil can be removed from the compressed air and returned to the oil circuit.

The BHLV-Z Series is equipped with a low-pressure oil-gas separation system designed to ensure minimal oil content in the delivered air. This function is important because excessive oil carryover can contaminate downstream piping, filters, valves, pneumatic equipment, and process materials.

Oil separation performance depends on the separator element, oil temperature, differential pressure, airflow, maintenance condition, and correct use of the specified lubricant. The separator system must be maintained according to the manufacturer’s operating instructions, and replacement intervals should be adjusted when the compressor operates in dusty, hot, humid, or otherwise demanding conditions.

6.1 Importance for Downstream Equipment

In a compressed-air network, oil carryover can create several operational problems. Oil may accumulate in dryers and filters, increase pressure drop, damage sensitive pneumatic components, or interfere with applications requiring controlled air quality. In gas-generation systems, pretreatment quality can affect the performance of downstream separation and purification equipment.

Low oil content does not mean that an oil-injected compressor can be used without downstream treatment in every application. Where air comes into direct contact with food, pharmaceuticals, electronics, medical products, or high-purity gases, the complete air-treatment system should be designed according to the required air-quality class and process standard.

Typical downstream equipment may include air receivers, water separators, coalescing filters, activated-carbon filters, refrigerated dryers, desiccant dryers, and monitoring instruments. The correct combination depends on the required pressure dew point, oil content, particle concentration, and process conditions.

7. Cooling System and Thermal Management

Heat management is fundamental to compressor reliability. During air compression, mechanical energy is converted into heat. If heat is not removed effectively, the oil temperature and discharge temperature may rise beyond the recommended operating range. Excessive temperature can accelerate lubricant degradation, affect sealing performance, and reduce component life.

The compressor uses an enhanced cooler with a side-intake and top-exhaust design. This arrangement is intended to improve airflow organization around the package and support the separation of cooler intake air from hot exhaust air.

The hot and cold zone isolation system further supports thermal management. By separating cooler intake zones from hot-air discharge zones, the package can reduce the possibility of hot exhaust air being drawn back into the cooling inlet. Preventing hot-air recirculation is especially important when the compressor is installed in a compact machinery room.

7.1 Side Intake and Top Exhaust

A side-intake and top-exhaust layout can provide practical installation benefits. Cooling air enters through a designated side area, passes through the cooler, and is discharged upward. Depending on the room design, this may simplify the arrangement of ventilation ducts and help direct hot air away from operators and neighboring equipment.

Correct installation remains essential. The room must provide sufficient fresh-air intake, adequate clearance, and a suitable route for hot-air exhaust. If the exhaust is allowed to return to the compressor intake, the compressor may operate at a higher inlet temperature, reducing cooling effectiveness and potentially triggering protective alarms.

In multi-compressor rooms, the location of each machine should be planned to avoid crossflow interference. Intake openings should not face the exhaust outlets of other equipment. The ventilation system should also account for the heat released by electrical cabinets, dryers, pumps, and other machinery.

7.2 Variable-Speed Fan Operation

The quiet centrifugal fan uses variable-frequency control to provide cooling with reduced unnecessary operation. A centrifugal fan can be selected for its ability to generate airflow through the cooler and ventilation path, while the variable-speed drive adjusts its output to the current thermal requirement.

Fan speed control can also contribute to a more comfortable working environment. Noise levels depend on fan speed, airflow design, enclosure construction, room acoustics, and installation conditions. By avoiding continuous operation at maximum speed when it is not needed, the compressor may reduce the acoustic burden in the machinery room.

8. Touchscreen Microcomputer Controller

The compressor includes a user-friendly touchscreen microcomputer controller for real-time monitoring of operating status. The controller serves as the interface between the equipment and the operator, displaying essential information and helping manage the compressor’s operating mode.

Depending on the configured system, the controller can be used to view pressure, temperature, running status, alarms, maintenance reminders, loading condition, fan operation, and other relevant parameters. Clear access to this information can help operators identify abnormal conditions before they develop into serious faults.

8.1 Monitoring and Protection

Modern compressor controllers typically monitor key variables such as discharge pressure, oil temperature, motor status, inverter status, and operating time. Protective functions may respond to high temperature, excessive pressure, motor overload, sensor abnormalities, phase or drive faults, and other conditions defined by the equipment design.

Real-time monitoring supports preventive maintenance. For example, a rising pressure difference across a filter may indicate fouling, while an abnormal temperature trend may suggest cooler blockage, inadequate ventilation, incorrect oil level, or a developing system issue.

Operators should use the controller as part of a broader maintenance program rather than relying on alarms alone. Alarm history, operating trends, inspection records, and energy data can provide a more complete view of compressor condition.

8.2 User-Friendly Operation

A touchscreen interface can simplify access to operating information for both experienced technicians and general plant operators. Clear menus and status displays reduce the need to interpret multiple separate gauges and switches.

For industrial facilities with several compressors, control integration may also be considered. Depending on the final system configuration, compressors can be coordinated through a central control strategy so that operating units match demand and standby units remain available for redundancy.

Any connection to a plant monitoring system should be implemented according to the site’s electrical, automation, and cybersecurity requirements. Communication protocols, remote access policies, and user permissions should be agreed during project engineering.

9. Manufacturing Strengths and Engineering Capability

The compressor is supplied by a gas equipment manufacturer that integrates research and development, engineering design, production, installation, and after-sales service. This integrated structure is valuable because industrial compressor performance depends not only on the individual machine but also on application engineering, installation quality, commissioning, and service support.

The company operates a standardized workshop of approximately 3,000 square meters, supported by office and warehouse facilities. A dedicated production environment can help organize assembly, inspection, component storage, and final testing. The warehouse capacity also supports the management of spare parts and production materials.

9.1 Research and Development

Research and development capability allows a manufacturer to adapt equipment to different process requirements. Low-pressure compressed air is not a single standardized application. A system for a gas generator may have different requirements from a textile plant, packaging line, or water-treatment installation.

Engineering teams may need to consider pressure fluctuations, duty cycles, ambient conditions, operating hours, air quality, installation space, electrical supply, and the relationship between the compressor and downstream equipment. Product development that accounts for these factors can produce more practical and reliable solutions than a one-size-fits-all approach.

The company’s broader experience in gas separation and purification equipment provides useful application context. Its product portfolio includes PSA nitrogen generators, PSA oxygen generators, membrane nitrogen and oxygen generators, nitrogen purification units, and ammonia decomposition hydrogen purification equipment. This background is relevant when the compressor is used as part of a complete gas-generation or gas-treatment system.

9.2 Production and Assembly

A reliable compressor package requires accurate mechanical assembly and careful integration of the air end, motor, inverter, oil system, separator, cooler, fan, electrical cabinet, sensors, and controller. Assembly quality affects alignment, vibration, oil circulation, electrical safety, and long-term serviceability.

Manufacturing processes should include incoming inspection of key components, controlled assembly procedures, electrical testing, pressure checks, sensor verification, and functional testing before shipment. Proper labeling and documentation are also important because they help installers and maintenance teams identify components and follow the correct service procedures.

The use of high-efficiency motor technology and integrated control equipment requires attention to both mechanical and electrical quality. The motor and inverter must be correctly matched, wiring must be secured and protected, grounding must be verified, and the control program must be checked against the intended operating parameters.

9.3 Quality Control

Strict quality control is essential for equipment intended for continuous industrial operation. A quality program should cover materials, machining, assembly, electrical systems, pressure-bearing components, safety functions, and final performance.

For a low-pressure compressor, quality checks should also confirm that the machine operates correctly at the specified pressure range. Testing only at a condition unrelated to the customer’s actual application may not provide sufficient assurance. Pressure, airflow, temperature, motor current, fan response, and control stability should be evaluated under relevant operating conditions.

Quality control continues after shipment. Installation guidance, commissioning support, operating instructions, spare-parts planning, and service response all contribute to the practical reliability of the equipment.

10. Competitive Advantages of the Product Configuration

The low-pressure permanent magnet VSD oil-injected rotary screw air compressor has several characteristics that distinguish it from conventional compressor arrangements. These advantages should be evaluated according to the user’s operating profile and should not be separated from proper system design.

10.1 Dedicated Low-Pressure Design

The first advantage is the use of a low-pressure dedicated air end. A compressor designed specifically for low-pressure service can be better matched to the pressure ratio and airflow requirements than a standard high-pressure unit operating with downstream pressure reduction.

This design approach can reduce the energy penalty associated with generating excessive pressure. It may also support more suitable internal compression conditions, temperature management, and control behavior for low-pressure applications.

10.2 Two-Stage Compression

The two-stage compression system divides the compression process and supports a balanced compression arrangement. This can contribute to stable operation, improved thermal control, and efficient delivery across the specified pressure range.

Compared with some single-stage low-pressure solutions, a well-designed two-stage system may offer better control of the compression process. The final result depends on the detailed air-end design and the application conditions, but the configuration provides a strong engineering foundation.

10.3 IE5 Permanent Magnet Motor

The IE5 permanent magnet synchronous motor is a major advantage for facilities seeking to reduce the lifecycle cost of compressed air. High motor efficiency lowers electrical losses during operation, while permanent magnet construction works effectively with variable-speed control.

Because compressed-air systems often operate for thousands of hours per year, even a modest reduction in power consumption can become significant over the equipment’s service life. The economic value should be assessed through a load-profile analysis rather than by comparing nameplate motor efficiency alone.

10.4 Dual Variable-Frequency Operation

The dual variable-frequency design controls both the main compression drive and the cooling fan. This is more comprehensive than controlling only the compressor motor while leaving the fan at a fixed operating point.

The arrangement can improve part-load efficiency, reduce unnecessary fan power, support pressure stability, and lower avoidable noise. It also allows the cooling system to respond more appropriately to changing thermal conditions.

10.5 Low Oil Carryover

The low-pressure oil-gas separation system is designed to minimize oil content in the delivered air. This can help protect downstream equipment and reduce contamination risks when the compressor is integrated with suitable air-treatment equipment.

Low oil carryover is especially valuable where compressed air passes into sensitive valves, filters, dryers, membrane systems, or gas-generation equipment. As with any oil-injected compressor, the desired air quality must be confirmed through the complete treatment system and appropriate monitoring.

10.6 Thermal and Acoustic Design

The quiet centrifugal fan, side-intake and top-exhaust cooler arrangement, and hot-and-cold zone isolation system address practical concerns that are sometimes overlooked in compressor selection.

Effective thermal management supports reliability, while controlled fan operation can improve the working environment. A package that is easier to ventilate and maintain may also reduce installation complications in a crowded industrial facility.

10.7 Integrated Engineering Support

The manufacturer’s experience in gas separation, purification, and industrial gas equipment creates an advantage for customers seeking more than a standalone compressor. The company can understand the relationship between compressed-air production and gas-generation processes, including the importance of stable pressure, airflow, pretreatment, and operating continuity.

Integrated support can include system sizing, equipment selection, installation planning, commissioning, maintenance guidance, and after-sales service. This approach helps reduce the risk that separate pieces of equipment will be selected without considering their interaction.

11. Comparison with Conventional Fixed-Speed Compressors

Fixed-speed compressors are often suitable for applications with a steady and predictable demand. However, many industrial systems experience significant variation. A fixed-speed unit may respond through load-unload cycling, inlet modulation, or other control methods that are less efficient at partial load than variable-speed operation.

The permanent magnet VSD compressor continuously adjusts its speed within the permitted operating range. This allows the delivered airflow to follow demand more closely. When demand increases, speed can rise; when demand decreases, speed can fall. The exact response is controlled by the pressure setpoint and the controller’s operating logic.

Fixed-speed compressors may also use fans that operate continuously at a constant speed. The dual variable-frequency design of the BHLV-Z Series allows fan power to be adjusted independently according to cooling demand.

However, variable-speed compressors are not automatically the best choice for every plant. If the compressor operates almost continuously at full load, the advantage of variable-speed control may be smaller. Correct sizing is therefore essential. A variable-speed machine that is significantly oversized may spend too much time at low output, while an undersized machine may operate continuously near its maximum capacity.

12. Comparison with High-Pressure Compressors Used with Pressure Reduction

Some facilities use a standard high-pressure compressor and then reduce the pressure through regulators. This can be practical when the plant has several users requiring different pressure levels, but it may be inefficient when the entire application is low pressure.

Compressing air to a higher pressure than required increases the energy input. The pressure reduction device then removes the excess pressure without recovering the associated energy. A dedicated low-pressure compressor can avoid this unnecessary compression step when the application does not need high pressure.

The low-pressure machine may also provide more appropriate flow control and thermal performance for the intended service. Its air end, oil circuit, and control system are aligned with the lower pressure range rather than being optimized for a substantially higher pressure ratio.

High-pressure compressors remain useful where high-pressure users are present or where a common pressure system is required. The selection should be based on the complete plant demand, not on the nominal pressure of one individual process.

13. Comparison with Oil-Free Compressors

Oil-injected and oil-free compressors serve different application requirements. An oil-injected screw compressor uses oil for sealing, lubrication, and cooling, while an oil-free compressor is designed to prevent oil from entering the compression chamber.

The BHLV-Z Series uses an oil-injected process with a low-pressure oil-gas separation system. This configuration can provide an effective balance of compression performance, thermal management, and equipment cost for many industrial applications.

Where the process requires extremely high air purity or direct-contact air with strict contamination limits, an oil-free compressor or a carefully engineered oil-removal treatment system may be required. Users should define the air-quality specification before selecting equipment.

An oil-injected compressor can be appropriate for gas-generation pretreatment, pneumatic equipment, conveying, packaging, and other processes where the compressed air is treated by filters and dryers before use. The final air quality depends on the compressor, separator, filters, dryers, pipework, maintenance, and operating practices as a complete system.

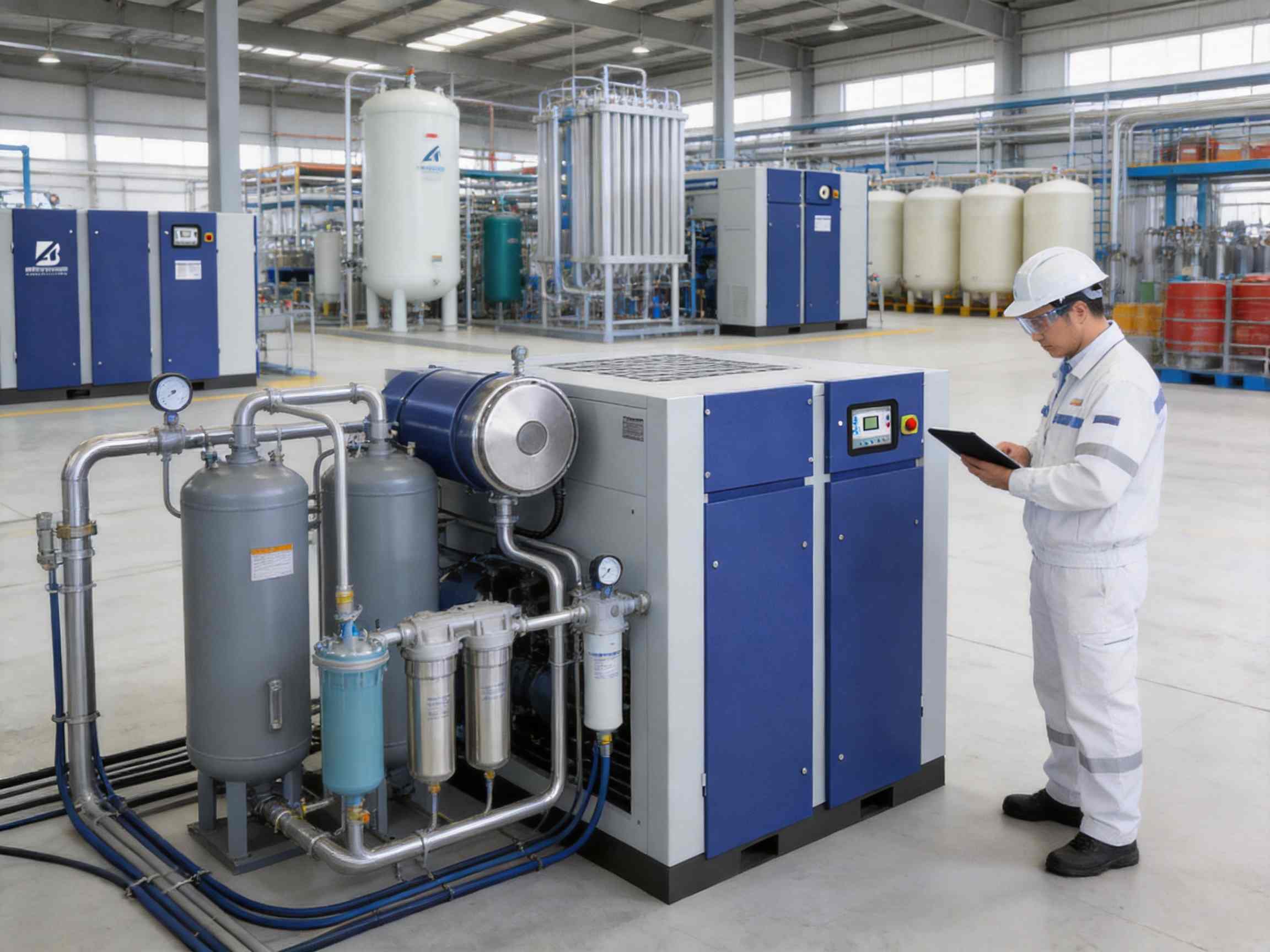

14. Application in Gas Separation and Purification Systems

Compressed air is often the starting feed gas for on-site nitrogen and oxygen generation. PSA systems, membrane systems, and purification units require an air supply with suitable pressure, flow stability, temperature, and pretreatment quality.

A low-pressure compressor can be beneficial when the gas-generation process is designed around low operating pressure. It can provide the required feed airflow without the energy cost of producing unnecessarily high pressure and then reducing it.

In a PSA nitrogen generator, compressed air passes through adsorbent beds that selectively remove oxygen and other components. The efficiency and productivity of the system are affected by pressure, cycle timing, air quality, and airflow stability. In a membrane system, feed pressure and flow also influence separation performance. A properly selected compressor helps create a stable foundation for these processes.

Oil separation and downstream filtration are important in gas-generation applications. Oil, water, and particles can damage adsorbents, contaminate membranes, increase pressure drop, and reduce the reliability of valves and instrumentation. The compressor should therefore be integrated with suitable air receivers, filters, dryers, and drains.

14.1 Industrial Gas Users

Industries using nitrogen or oxygen may include petrochemical processing, food packaging, metal heat treatment, automotive production, electronics, and chemical manufacturing. Each application has different gas purity and flow requirements.

For example, nitrogen may be used for blanketing, oxidation prevention, laser cutting, soldering, food preservation, or inerting. Oxygen may be used in combustion support, wastewater treatment, medical-related systems, or industrial oxidation processes. The compressor supporting the gas generator must be selected based on the generator’s feed-air requirements rather than on the final gas flow alone.

The manufacturer’s experience with gas separation and purification equipment supports the development of coordinated systems. This can help customers address the compressor, generator, purification, storage, and control requirements as a connected project.

15. Installation Planning

Correct installation is necessary to obtain the expected performance and service life of the compressor. Before delivery, the user should confirm the foundation, room dimensions, electrical supply, ventilation route, piping arrangement, drainage provisions, and maintenance clearance.

The compressor should be installed on a stable and level foundation capable of supporting the equipment weight and limiting vibration transmission. Sufficient clearance should be maintained around air intake areas, electrical cabinets, service doors, coolers, and oil-system components.

The side-intake and top-exhaust design should be considered during room planning. The exhaust route must prevent hot air from returning to the intake. In enclosed rooms, forced ventilation or ducting may be required to remove heat from the building.

Compressed-air piping should be sized to reduce pressure loss. Sharp bends, undersized pipes, poor-quality connections, and excessive flexible hose can increase resistance. The air receiver should be sized according to the demand profile, compressor control strategy, allowable pressure variation, and plant operating requirements.

Electrical installation should be performed by qualified personnel. The power supply must match the motor and inverter requirements. Proper grounding, overload protection, cable sizing, isolation, and emergency-stop arrangements should be provided according to applicable electrical codes and the project specification.

16. Commissioning and Start-Up

Commissioning confirms that the compressor has been installed correctly and that its operating parameters match the application. Before start-up, technicians should inspect oil level, air filters, separator connections, piping, electrical wiring, sensors, fan rotation, and safety devices.

The discharge pressure should be set within the specified range of the selected model and application. The controller should be configured according to the desired operating mode, pressure setpoint, restart behavior, and communication requirements.

During initial operation, operators should monitor pressure, discharge temperature, oil temperature, motor current, vibration, noise, fan performance, and any signs of leakage. The compressor should be observed through different loading conditions so that the control response can be verified.

Commissioning should also include inspection of the downstream air-treatment system. Filters and dryers must be correctly connected, drains must function properly, and pressure drops should be checked. If the compressor feeds a gas generator, the complete sequence from compressed-air production to gas output should be evaluated.

17. Maintenance Requirements

Routine maintenance protects efficiency and reliability. Maintenance intervals depend on operating hours, ambient conditions, lubricant type, air quality, load profile, and the manufacturer’s instructions.

Important maintenance activities may include checking and replacing the air filter, inspecting the oil filter, monitoring separator differential pressure, checking oil condition and level, cleaning the cooler, examining belts or couplings where applicable, inspecting electrical connections, and verifying sensor accuracy.

The cooler should be kept clean because dust and debris reduce heat transfer and increase airflow resistance. In dusty environments, the cleaning interval may need to be shorter than in a clean factory. The room’s ventilation filters should also be maintained so that the compressor receives sufficient cooling air.

The oil-gas separator should be replaced when its condition or differential pressure indicates that service is required. Delaying separator maintenance can increase energy consumption and may contribute to oil carryover or high-pressure conditions.

Variable-frequency drives and electrical cabinets require protection from excessive dust, moisture, heat, and vibration. Technicians should inspect terminals, cooling paths, and warning indicators according to safe electrical work procedures.

17.1 Preventive Performance Monitoring

Performance monitoring can identify changes before they become failures. Operators can record discharge pressure, airflow, temperature, power consumption, operating hours, and maintenance events. Trends are often more informative than individual readings.

An increase in power consumption at the same pressure and airflow may indicate cooler fouling, filter restriction, oil deterioration, leakage, or control problems. An increase in discharge temperature may indicate inadequate ventilation, fan malfunction, low oil level, or cooler blockage.

Maintenance records should include the date, operating hours, parts replaced, oil used, alarm history, and technician observations. A consistent record supports more accurate service planning and helps identify recurring problems.

18. Energy-Saving Opportunities Beyond the Compressor

The compressor is only one part of the compressed-air system. Even a highly efficient compressor may deliver limited savings if the downstream network contains leaks, excessive pressure drops, or poorly controlled demand.

Compressed-air leakage is a common source of energy loss. Leaks may occur in pipe joints, hoses, quick couplings, valves, cylinders, drains, and unused branch lines. A regular leak-detection program can reduce the amount of air the compressor must produce.

Pressure should be set as low as practical for the process. Increasing system pressure to compensate for poor piping or inadequate maintenance can increase energy consumption and may increase leakage rates. The low-pressure range of the BHLV-Z Series encourages users to evaluate whether their process truly requires a higher pressure.

Air receivers can help manage short-term demand fluctuations and reduce rapid compressor response. However, receiver sizing and placement should be engineered. A receiver cannot compensate for a fundamentally undersized compressor or an uncontrolled major leak.

Automatic drains, correctly specified filters, and properly maintained dryers also contribute to efficient operation. Excessive pressure drop across blocked filters or overloaded dryers forces the compressor to operate at a higher pressure than necessary.

19. Selecting the Correct Model

Model selection should begin with a detailed demand assessment. Users should identify the minimum, average, and maximum airflow requirements; the required working pressure; the number of operating hours; the ambient temperature; and the required air quality.

The stated series covers 1.8 to 75 m³/min and 22 to 280 kW. This range provides flexibility, but the selected compressor should not be based only on the highest possible demand. Oversizing can reduce the effectiveness of variable-speed operation, while undersizing can cause continuous overload and insufficient pressure recovery.

Demand measurements should ideally be taken over representative production cycles. If measurements are unavailable, the calculation should include the flow requirements of each machine, the operating factor, expected expansion, leakage allowance, and the need for standby capacity.

Users should also define whether the compressor will operate alone or in parallel with existing machines. A combination of variable-speed and fixed-speed compressors may be suitable for some plants, with the variable-speed unit handling fluctuations and fixed-speed units covering the base load.

20. Reliability, Service, and Customer Support

Industrial customers evaluate compressors according to total ownership value, not only purchase price. Equipment availability, energy consumption, maintenance requirements, spare-parts access, technical support, and installation quality all influence the real cost of ownership.

The manufacturer’s integrated capabilities in research, design, production, installation, and after-sales service provide a foundation for lifecycle support. Its sales and service experience across numerous regions and industrial sectors also supports practical knowledge of different operating conditions.

Service support may include technical consultation, equipment selection, system design, installation guidance, commissioning, operator training, troubleshooting, and maintenance planning. The level of support should be confirmed during project negotiations so that responsibilities and response procedures are clear.

For international projects, documentation should be provided in a form suitable for local operators and maintenance personnel. Important documents may include manuals, electrical diagrams, recommended spare-parts lists, maintenance schedules, pressure and airflow data, safety instructions, and commissioning records.

21. Environmental and Workplace Considerations

Energy efficiency has both economic and environmental importance. Reducing the electrical power required to produce compressed air can lower operating costs and may reduce the indirect emissions associated with electricity consumption.

The IE5 permanent magnet motor, variable-speed air-end drive, and variable-speed fan support an energy-conscious operating strategy. These features are most effective when the compressor is correctly sized and operated within its intended pressure range.

The quiet centrifugal fan and controlled cooling operation can also support a more comfortable workplace. Noise exposure should still be assessed according to local regulations and site conditions. If the compressor is installed near occupied areas, additional acoustic treatment may be considered.

Oil-injected compressors require responsible lubricant handling. Used oil, separator elements, filters, and contaminated materials should be disposed of according to applicable environmental requirements. Preventing oil leaks and maintaining the oil circuit also protect the machinery room and surrounding equipment.

22. Practical Value for Different Industries

22.1 Petrochemical and Chemical Production

Petrochemical and chemical plants use compressed air for instrumentation, pneumatic valves, conveying, and process support. A low-pressure compressor may be suitable for selected process-air duties, provided that the pressure, air quality, hazardous-area classification, and redundancy requirements are satisfied.

22.2 Textile Manufacturing

Textile facilities often operate numerous machines with changing airflow requirements. Variable-speed control can help the compressor respond to production changes, while low-pressure operation may reduce energy waste when high pressure is not needed.

22.3 Food Processing and Packaging

Compressed air may support packaging, conveying, filling, sorting, and automation. The oil-gas separation system and downstream filtration should be designed around the required air-quality level. Where air contacts food or packaging surfaces, the complete system must comply with the relevant hygiene and air-quality requirements.

22.4 Automotive Manufacturing

Automotive plants use compressed air in assembly, painting, robotic tooling, component handling, and testing. Some areas require high-quality air and stable pressure. The compressor can serve appropriate low-pressure systems or be integrated into a broader plant utility network.

22.5 Heat Treatment

Heat-treatment operations may use nitrogen, oxygen, or compressed air for protective atmospheres, combustion support, and related processes. When connected to gas-generation equipment, the compressor should be selected to provide stable feed air and suitable pretreatment.

22.6 SMT and Electronics Manufacturing

SMT production and electronics assembly rely on automated pick-and-place systems, pneumatic actuators, and precision equipment. Stable pressure, low oil carryover, controlled temperature, and reliable monitoring help protect sensitive equipment and reduce interruptions.

23. Recommended Project Evaluation Process

A structured evaluation process helps users determine whether the compressor is appropriate for a particular plant.

First, define the required pressure and airflow at the point of use. The requirement should be based on actual process conditions rather than only the inlet specification of individual machines.

Second, measure or estimate the demand profile over a full operating cycle. Record peak demand, average demand, minimum demand, shift changes, and planned future expansion.

Third, identify the required air quality. Determine allowable oil content, particle concentration, pressure dew point, and any special requirements related to food, pharmaceuticals, electronics, gas generation, or direct product contact.

Fourth, assess the installation environment. Ambient temperature, dust, humidity, altitude, ventilation, electrical supply, and available service space can all affect compressor selection.

Fifth, compare lifecycle cost. The analysis should include purchase price, electricity, maintenance, filters, lubricant, spare parts, downtime risk, and expected operating hours.

Finally, confirm commissioning and service arrangements. A technically suitable machine can still underperform if it is incorrectly installed, poorly configured, or not maintained.

24. Frequently Asked Questions

What is the working pressure range of the compressor?

The stated working pressure range is 2 to 5 bar, equivalent to approximately 29.0 to 72.5 psig. The final operating pressure should be selected according to the process requirement and the specific model configuration.

What airflow range is available?

The air capacity range is 1.8 to 75 m³/min, equivalent to approximately 63.6 to 2,648.6 cfm. Actual delivered airflow depends on operating pressure, ambient conditions, inlet conditions, and the selected model.

What motor powers are available?

The series covers motor power from 22 to 280 kW, equivalent to approximately 30.0 to 380.7 hp. Model selection should be based on the required airflow and pressure rather than motor power alone.

Why is a permanent magnet motor used?

A permanent magnet synchronous motor can provide high electrical efficiency and is well suited to variable-speed operation. The IE5-efficiency motor is intended to reduce electrical losses and improve the compressor’s lifecycle energy performance.

What does VSD mean?

VSD means variable-speed drive. It allows the compressor motor speed to change according to compressed-air demand. This can reduce unnecessary energy consumption during partial-load operation and help maintain more stable system pressure.

What is the purpose of the dual variable-frequency design?

The design controls both the main compressor drive and the cooling fan. The compressor speed responds to airflow demand, while the fan speed responds to cooling demand. This can reduce unnecessary fan power and support more balanced thermal management.

Is the compressor oil-free?

No. It is an oil-injected rotary screw air compressor. Oil is used for sealing, lubrication, and cooling during compression. The low-pressure oil-gas separation system is designed to minimize oil content in the delivered air.

Does the compressor require downstream filters and dryers?

In most industrial systems, downstream treatment should be selected according to the required air quality. Filters, dryers, water separators, and drains may be necessary. Applications involving gas generation, food, electronics, or other sensitive processes require a carefully specified treatment system.

Can the compressor be used with nitrogen or oxygen generators?

It can be considered as a compressed-air source for suitable gas separation and purification systems. The compressor must be matched to the generator’s required pressure, flow, air quality, operating cycle, and installation conditions.

What is the benefit of two-stage compression?

Two-stage compression divides the pressure increase between two compression elements. This can support balanced compression, thermal control, and efficient low-pressure operation when the air end is designed for the intended service.

How does the cooling system improve operation?

The enhanced cooler uses a side-intake and top-exhaust layout, while the hot-and-cold zone isolation system helps prevent hot exhaust air from returning to the cooler intake. The variable-frequency centrifugal fan adjusts cooling airflow according to operating conditions.

How is the compressor controlled?

A touchscreen microcomputer controller monitors the operating status and provides access to operating parameters, alarms, and maintenance information. The controller helps operators manage pressure and observe the condition of key components.

What should be considered before installation?

Users should review foundation strength, maintenance clearance, electrical supply, ventilation, exhaust routing, piping size, air-treatment equipment, drainage, ambient conditions, and communication requirements.

How can users maximize energy savings?

Energy performance improves when the compressor is correctly sized, operated at the lowest practical pressure, maintained regularly, and connected to an efficient air network. Leak detection, clean filters, suitable dryers, and reduced pressure drop are also important.

Is a variable-speed compressor suitable for every load profile?

It is especially useful where demand changes over time. If a plant operates continuously at full load, the advantage of variable-speed control may be less pronounced. A load-profile analysis should be completed before selection.

What industries can use this compressor?

Potential industries include petrochemical processing, textiles, food processing, automotive manufacturing, heat treatment, electronics, packaging, gas generation, and other applications requiring low-pressure industrial compressed air.

25. Conclusion

The low-pressure permanent magnet VSD oil-injected rotary screw air compressor is designed for industrial users that need efficient, stable, and appropriately pressurized compressed air. Its combination of a dedicated low-pressure air end, two-stage compression, IE5 permanent magnet synchronous motor, dual variable-frequency control, low-pressure oil-gas separation, and enhanced thermal management provides a comprehensive solution for modern low-pressure applications.

Compared with conventional high-pressure compressors used with pressure reduction, the product can help avoid unnecessary compression work when the process requires only 2 to 5 bar. Compared with many fixed-speed arrangements, its variable-speed air-end drive can respond more closely to changing demand. The variable-frequency centrifugal fan adds another layer of energy and thermal control, while the hot-and-cold zone isolation system supports reliable operation in properly ventilated machinery rooms.

The product is also supported by a manufacturer with capabilities covering research and development, engineering design, production, installation, and after-sales service. Its experience with gas separation and purification equipment is particularly relevant for customers developing integrated nitrogen, oxygen, membrane, PSA, or purification systems.

For the best result, users should evaluate the compressor as part of a complete compressed-air system. Correct model selection, air-quality treatment, installation, commissioning, preventive maintenance, and leak management are all necessary to achieve dependable performance and long-term value.

References

International Electrotechnical Commission. IEC 60034-30-1, Rotating Electrical Machines: Efficiency Classes of Line Operated AC Motors.

International Organization for Standardization. ISO 1217, Displacement Compressors: Acceptance Tests.

International Organization for Standardization. ISO 8573, Compressed Air: Contaminants and Purity Classes.

Compressed Air and Gas Institute. Compressed Air and Gas Handbook.

U.S. Department of Energy. Improving Compressed Air System Performance: A Sourcebook for Industry.

European Commission. Energy-Efficiency Requirements and Best Practices for Industrial Motor-Driven Systems.

Industrial compressed-air system engineering principles, including compressor sizing, pressure management, air treatment, cooling, and preventive maintenance practices.

Product: Low-Pressure Permanent Magnet VSD Oil-Injected Rotary Screw Air Compressor
