Gas Purification Equipment

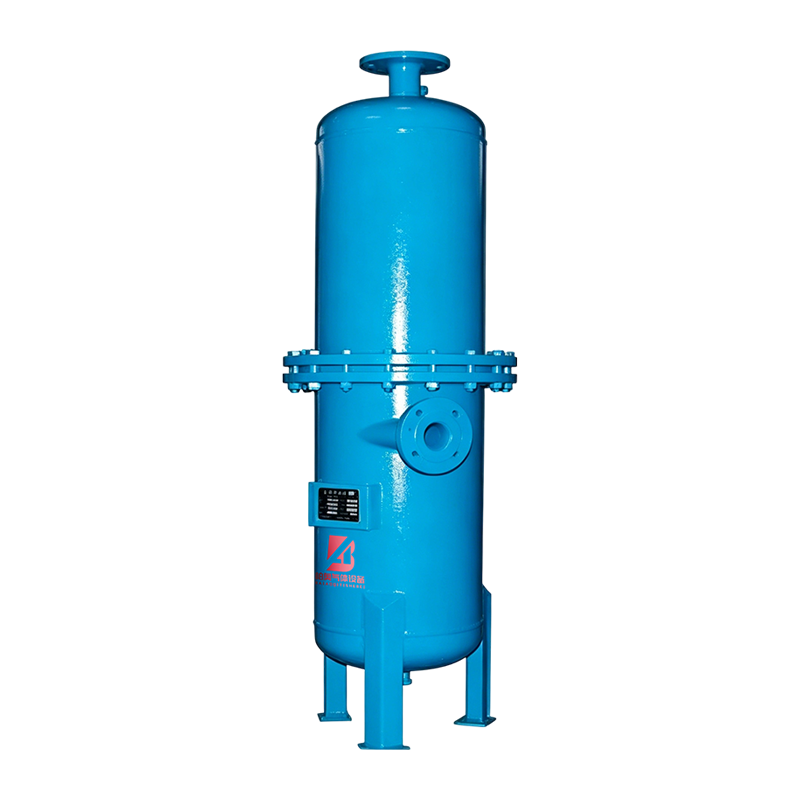

BDC High-efficiency Oil Remover
Product Introduction
Working Principle:
This system integrates three-stage purification: cyclone separation, pre-filtration, and fine filtration. It directly blocks oil in compressed air. Through cyclone separation, gravity settling, and layer-by-layer filtration of coarse and fine filters, it thoroughly removes oil, water, and dust from compressed air. The filtration accuracy of the treated compressed air can reach 0.1 μm, and the residual oil content is less than 0.01PPm.
Technical Specifications:
Operating pressure: 0.4–1.0 MPa (1.0–3.0 MPa available)
Inlet air temperature: ≤50°C
Outlet oil content: ≤0.1–0.01 ppm
Pressure loss: ≤0.02 MPa
