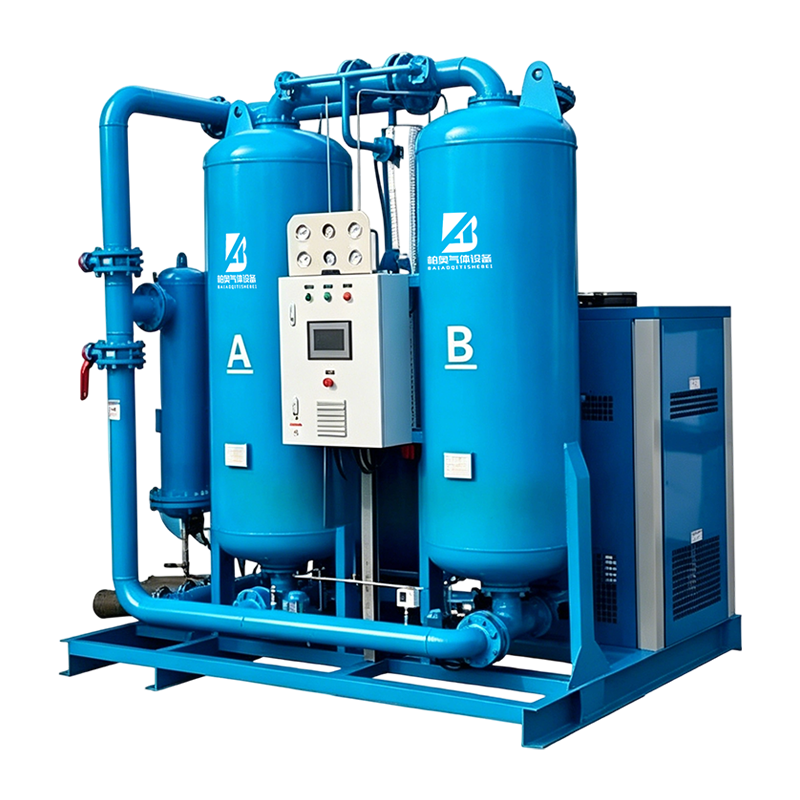

BEA Combined low dew point dryer

Working Principle:
The combined low dew point compressed air dryer (abbreviated as: combined dryer) is a low dew point drying device that integrates a refrigerated dryer and an adsorption dryer. The refrigerated dryer has the advantages of no air loss and low energy consumption, while the adsorption dryer has the advantage of a low dew point. The combined low dew point dryer developed by our company combines the advantages of both refrigerated dryers and adsorption dryers. Through reasonable pipeline connections and capacity matching, it maximizes the advantages of both and achieves the highest cost performance. The combined dryer mainly combines a refrigerated dryer and an adsorption dryer, and sometimes adds corresponding filtration, dust removal, and oil removal devices to make the dryer adaptable to more complex operating environments.

Technical Features:
Compact integrated two-in-one structure; easy to install and operate.
Excellent drying performance with a low dew point.
Low regeneration gas consumption.
Stable and reliable operation via imported intelligent PLC control.

Technical Specifications:
Working pressure: 0.4–1.0 MPa (1.0–3.0 MPa available)
Dew point: -60°C to -73°C
Cooling method: Water-cooled or air-cooled
Inlet air temperature: ≤45°C
Inlet water pressure: 0.2–0.4 MPa
Inlet water temperature: ≤32°C
Regeneration gas consumption: 1–3%
