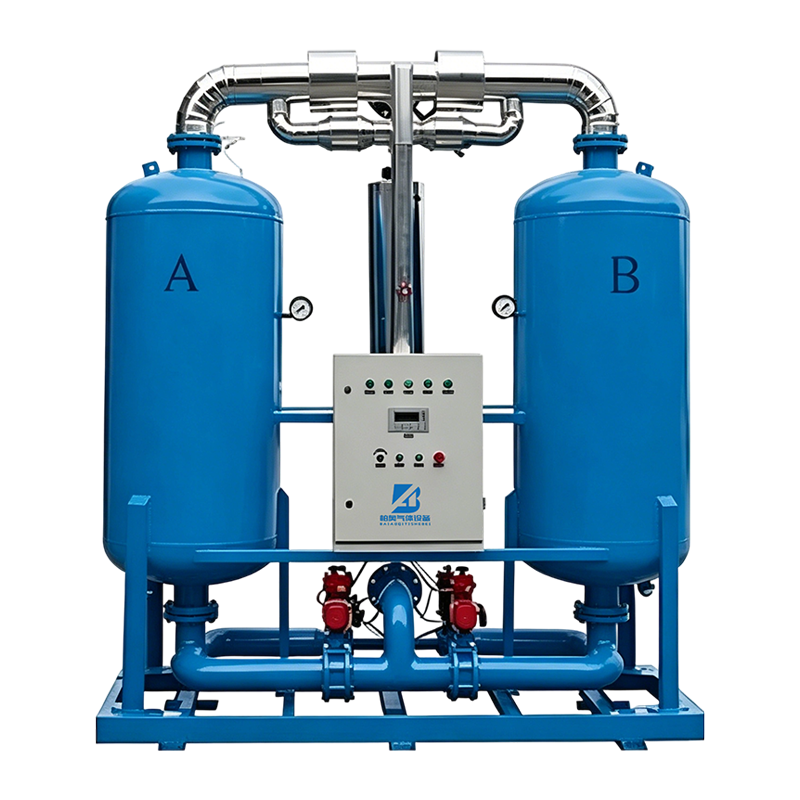

BEL Micro-heat Regenerative Adsorption Dryer

Working Principle:
This product combines the advantages of both hot and heatless regeneration methods. The regenerated gas regenerates the desiccant after being heated, which improves the regeneration effect and reduces the amount of gas consumed during regeneration.

Technical Features:
1. Imported PLC intelligent control ensures stable and reliable operation.
2. Flanged filling port allows for convenient replacement.
3. Unique sight glass design provides clear visibility of operating conditions.
4. Advanced pneumatic valves ensure a service life of over 1 million cycles.
5. Specialized airflow diffusion device maximizes the service life of the desiccant.

Technical Specifications:
Operating Pressure: 0.4–1.0 MPa (1.0–3.0 MPa available)
Dew Point: ≤-40°C (-40°C to -73°C available)
Inlet Temperature: ≤50°C
Regeneration Air Consumption: ≤4–6%
Pressure Drop: ≤0.02 MPa
Cycle Time: 60–120 minutes
