Micro-Heat Regenerative Adsorption Dryers for Reliable Industrial Gas Purification

Compressed air and process gas often contain moisture that can damage downstream equipment, reduce product quality, accelerate corrosion, and interrupt production. In applications such as gas separation, food processing, textile manufacturing, heat treatment, automotive production, petrochemical processing, and SMT electronics, controlling the pressure dew point is therefore an essential part of a dependable gas-treatment system.

The BEL Micro-heat Regenerative Adsorption Dryer is designed to provide stable, low-dew-point compressed air and process gas through a combination of heated and heatless regeneration technologies. This hybrid operating principle helps improve desiccant regeneration while limiting the quantity of product gas used for regeneration. The result is a practical balance between drying performance, energy consumption, operating stability, and equipment service life.

Manufactured by Zhejiang Baiao Gas Equipment Co., Ltd., the dryer is part of a broader portfolio of gas separation and purification equipment. The manufacturer integrates research and development, engineering design, fabrication, installation, and after-sales service. This integrated capability is important because industrial drying equipment must be selected and configured according to gas flow, pressure, inlet temperature, dew-point requirements, installation conditions, and the requirements of the complete gas-production system.

This article explains the operating principle, construction features, technical advantages, model range, manufacturing strengths, application value, maintenance requirements, and selection considerations of the BEL Micro-heat Regenerative Adsorption Dryer.

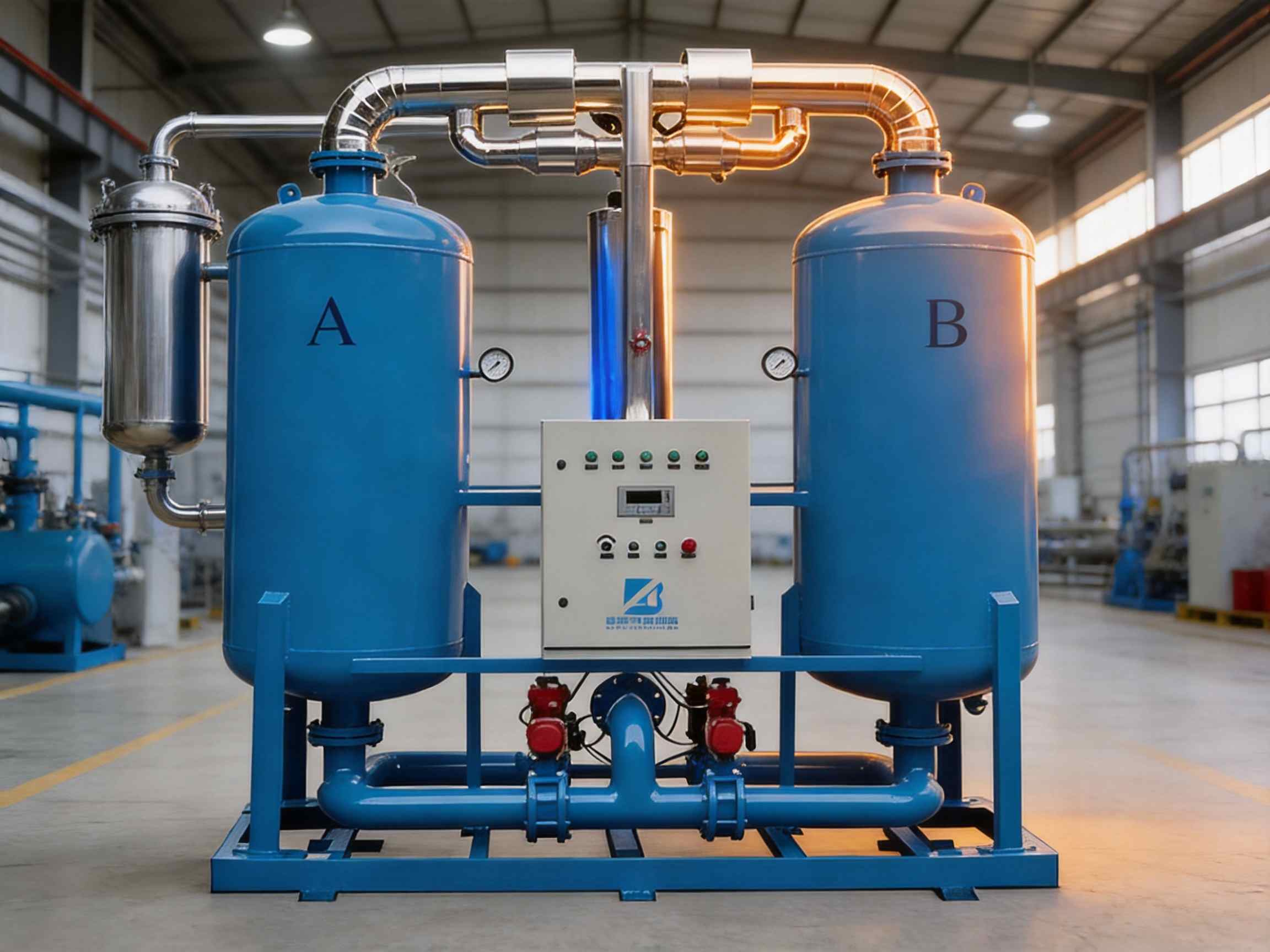

BEL Micro-heat Regenerative Adsorption Dryer

1. The Role of Adsorption Drying in Industrial Gas Systems

Air drawn from the atmosphere contains water vapor. When air is compressed, the concentration of moisture per unit volume increases, and some of the water may condense as liquid. Even after mechanical separation and cooling, compressed air can retain enough moisture to create serious operating problems.

Moisture can corrode carbon-steel pipelines, interfere with pneumatic valves, damage instruments, contaminate process gas, and cause freezing in low-temperature sections. In gas separation systems, water may also affect adsorbents, membranes, catalysts, and purification media. A dryer installed upstream of sensitive equipment helps create the stable gas conditions required for continuous operation.

Refrigerated dryers are suitable for many general-purpose applications, but they normally provide a higher pressure dew point than adsorption dryers. When the process requires a dew point of approximately -40°C or lower, an adsorption dryer is generally more appropriate. Adsorption dryers remove water vapor by passing compressed gas through a desiccant that attracts and holds moisture on its internal surface.

Because the desiccant eventually becomes saturated, the dryer must regenerate it. A two-tower adsorption dryer typically operates with one tower drying while the other tower is regenerated. After a defined cycle, the towers switch roles. Continuous operation is achieved by coordinating valves, heating, regeneration flow, depressurization, and repressurization.

The performance of an adsorption dryer depends on more than the nominal flow rate. Desiccant loading, tower dimensions, gas velocity, inlet temperature, operating pressure, regeneration conditions, valve performance, control accuracy, and the quality of upstream filtration all affect the final dew point and service life.

2. Hybrid Micro-Heat Regeneration Principle

The BEL Micro-heat Regenerative Adsorption Dryer combines the main benefits of heated regeneration and heatless regeneration. During regeneration, a portion of the dry gas is heated before it passes through the saturated desiccant. The heat helps release adsorbed moisture, while the regeneration gas transports that moisture out of the tower.

In a conventional heatless dryer, a larger portion of dry product gas is expanded and sent through the offline tower. The pressure reduction lowers the partial pressure of water vapor and allows the desiccant to release moisture. This method is mechanically simple, but it can consume a relatively large percentage of the generated dry gas.

A heated dryer uses an external heater to raise the temperature of regeneration gas. Higher gas temperature improves the ability of the regeneration stream to remove moisture from the desiccant. Depending on the design, the system can reduce regeneration-gas consumption and improve the consistency of regeneration.

The micro-heat configuration applies heat in a controlled regeneration process rather than relying solely on a large purge flow. According to the stated technical specifications, regeneration air consumption is approximately 4–6%. This level is intended to reduce the loss of useful dry gas compared with many traditional heatless configurations, although actual consumption depends on operating pressure, inlet conditions, gas composition, dew-point requirements, and control settings.

The hybrid principle creates several practical benefits:

First, heating improves the regeneration effect. More complete removal of moisture helps the desiccant return to a condition suitable for the next drying cycle.

Second, lower regeneration-gas consumption can increase the quantity of compressed gas available to the process. This is particularly valuable where the gas generator or compressor has limited capacity.

Third, controlled heating can improve performance when the required dew point is low or when the dryer operates under variable load conditions.

Fourth, the operating method can provide a useful balance between equipment complexity and energy efficiency. It does not depend exclusively on high purge consumption, while it also avoids the need for an excessively high regeneration temperature.

The drying cycle is controlled automatically. One tower is normally connected to the wet compressed-air stream for adsorption, while the other tower undergoes regeneration, cooling, or standby operation. After the programmed cycle is complete, the PLC coordinates the valve sequence and switches the towers.

3. Principal Technical Specifications

The standard operating pressure range is 0.4–1.0 MPa. Configurations for 1.0–3.0 MPa are available for applications requiring higher pressure. The rated pressure range must be confirmed during project design because pressure affects gas density, tower velocity, regeneration requirements, and the actual processing capacity of the dryer.

The standard dew-point performance is no higher than -40°C. Options are available for dew points from -40°C to -73°C. The required dew point should be specified according to the most demanding downstream process. Selecting a lower dew point than necessary may increase equipment cost and energy consumption, while selecting an insufficient dew point may compromise the process.

The maximum recommended inlet temperature is 50°C. Inlet temperature is a critical design factor because warm compressed air carries more water vapor and places a higher moisture load on the desiccant. An aftercooler, water separator, and suitable prefiltration system should normally be installed upstream to protect the dryer.

Pressure drop is specified at no more than 0.02 MPa under the rated conditions. A low pressure drop helps preserve the usable pressure available to downstream equipment and reduces the amount of additional compressor work required to deliver the target process pressure.

Cycle time is adjustable within approximately 60–120 minutes. The appropriate cycle depends on the model, gas conditions, required dew point, desiccant type, and control strategy. A longer cycle may improve utilization of the adsorption capacity, while the final setting must prevent moisture breakthrough under the actual operating load.

Model	Rated gas processing capacity (Nm³/h)	Inlet and outlet diameter DN (mm)	Power supply	Installed power (kW)	Dimensions L × W × H (mm)	Weight (kg)
BEL-3	3	32	220/50 V/Hz	1.35	1150 × 385 × 1370	370
BEL-6	7.2	40	To be confirmed	3.1	1310 × 500 × 1830	675
BAL-12	13.2	50	380/50 V/Hz	5.8	1550 × 625 × 1930	1050
BEL-20	22	65	To be confirmed	9.7	1950 × 685 × 2180	1050
BEL-30	33	80	To be confirmed	14.7	1950 × 685 × 3600	1800
BEL-40	44	100	To be confirmed	19.5	2200 × 775 × 2570	2520
BEL-60	66	125	To be confirmed	29.7	2400 × 1000 × 2790	3750
BEL-80	88	150	To be confirmed	41.5	2650 × 1100 × 2980	4100
BEL-100	110	150	To be confirmed	52	2930 × 1200 × 3200	4760
BEL-150	165	200	To be confirmed	76.5	3500 × 1650 × 3560	5820
BEL-200	220	250	To be confirmed	93	3600 × 1680 × 3650	7280

The table provides the principal published model information. The source specification lists power-supply data explicitly for some models but does not state it for every model. Final quotations and engineering documents should therefore confirm voltage, frequency, control-panel requirements, heater configuration, electrical protection, and any site-specific certification before purchase.

4. Product Design Features

4.1 Intelligent PLC Control

The dryer uses imported PLC-based intelligent control to coordinate adsorption, regeneration, heating, cooling, valve switching, and operating alarms. Automatic control reduces the need for constant manual intervention and helps maintain repeatable cycle timing.

A PLC also makes it easier to coordinate the dryer with upstream compressors, downstream gas generators, receivers, filtration equipment, and plant control systems. Depending on the final configuration, operators may monitor pressure, temperature, valve status, cycle stage, and alarm conditions from the control interface.

Stable control is particularly important in adsorption drying because an incorrect valve sequence can allow wet gas to bypass the active tower, interrupt regeneration, or cause premature moisture breakthrough. Accurate timing and interlocking help protect the equipment and improve process consistency.

4.2 Flanged Desiccant Filling Port

The flanged filling port is designed to simplify desiccant loading and replacement. Desiccant is a consumable working medium, and its service life depends on moisture loading, oil contamination, dust, thermal stress, mechanical abrasion, and operating conditions.

A convenient filling port reduces the time required for maintenance and makes it easier to inspect or replace the adsorbent during planned shutdowns. The flanged arrangement also supports a more secure connection and can help reduce the risk of leakage when correctly installed.

4.3 Sight Glass for Operating Visibility

The dryer incorporates a specialized sight-glass arrangement that provides visual access to operating conditions. Visual inspection can help maintenance personnel observe the condition of the desiccant or identify abnormal behavior during service.

Although a sight glass does not replace pressure, temperature, dew-point, or alarm instrumentation, it adds a useful layer of operational information. Clear visibility can support faster troubleshooting and help technicians recognize conditions that require inspection before they develop into a larger problem.

4.4 Long-Life Pneumatic Valves

Automatic switching places repeated demands on the valves that direct gas through the adsorption and regeneration towers. The product uses advanced pneumatic valves with a stated service life of more than one million cycles.

Long valve life is an important advantage over poorly matched or undersized valve systems. Valve failure can cause leakage, pressure instability, incomplete regeneration, or cross-contamination between wet and dry gas paths. Durable pneumatic components help reduce unplanned downtime and support dependable operation in continuous industrial service.

The actual service life of any valve depends on air quality, actuation frequency, pressure conditions, installation, seal compatibility, and maintenance. The upstream air-treatment system should therefore include effective particulate and oil-removal filtration.

4.5 Specialized Airflow Diffusion

A specialized airflow diffusion device distributes gas more evenly through the desiccant bed. Uniform airflow is important because channeling can cause some areas of the bed to receive excessive flow while other areas remain underused.

Improved distribution helps make better use of the desiccant volume and reduces localized loading. It can also limit mechanical impact on the adsorbent, reducing dust formation and helping extend desiccant service life. In comparison with a basic vessel design lacking effective distribution, a dedicated diffusion system can provide more stable adsorption and regeneration performance.

5. Advantages Compared with Conventional Dryer Approaches

5.1 Lower Regeneration Gas Consumption than Many Heatless Designs

One of the central advantages of the micro-heat concept is the reduction of regeneration gas consumption. Conventional heatless dryers may use a significant proportion of dry product gas to regenerate the offline tower. That gas is not available for the production process, so the compressor or gas generator must produce additional capacity.

With regeneration air consumption specified at approximately 4–6%, the micro-heat dryer is designed to reduce this operating penalty. The exact saving depends on the comparison basis and site conditions, but the concept is especially attractive when compressed air is expensive or when available compressor capacity is limited.

5.2 Improved Regeneration Effect

Heating the regeneration gas increases its capacity to remove retained moisture from the desiccant. Better regeneration can provide a more stable dew point and reduce the possibility that moisture accumulates from cycle to cycle.

This characteristic can be useful in humid environments, under demanding dew-point requirements, or where the dryer must operate for long periods without frequent manual adjustment. The controlled heating method also helps balance regeneration performance against energy use.

5.3 Low Pressure Drop

The specified pressure drop of no more than 0.02 MPa supports efficient system operation. Every unnecessary pressure loss increases the pressure that the compressor must generate. By limiting resistance through the vessel, valves, and airflow passages, the dryer helps preserve downstream pressure.

Low pressure drop can be particularly valuable in systems supplying pneumatic equipment, membrane separation units, PSA systems, instrument air networks, and process lines with strict pressure requirements.

5.4 Broad Capacity Range

The model range extends from the compact BEL-3 through the BEL-200. Published rated processing capacities range from approximately 3 Nm³/h to 220 Nm³/h. This range allows the same general dryer concept to serve smaller equipment packages, laboratory-scale industrial systems, and larger process installations.

A broad model range can simplify equipment selection and standardization. Customers with multiple plants or production lines may benefit from using a consistent operating concept while selecting different vessel sizes according to flow demand.

5.5 Adaptability to Higher Pressure and Lower Dew Point Requirements

Standard operating pressure is 0.4–1.0 MPa, with options for 1.0–3.0 MPa. Dew-point options extend from the standard -40°C level to as low as -73°C. These options make the equipment adaptable to different industrial gas-quality requirements.

Higher-pressure configurations should be designed with appropriate pressure-vessel specifications, safety devices, valve ratings, instrumentation, and regulatory compliance. Similarly, lower-dew-point configurations may require changes in cycle timing, desiccant selection, heater capacity, and control logic.

5.6 Maintenance-Oriented Construction

The flanged filling port, visible operating area, automatic control, and long-life pneumatic valves demonstrate a design focus on maintenance as well as initial performance. Industrial users generally evaluate equipment according to total operating value rather than purchase price alone.

Reduced maintenance time, simpler desiccant replacement, clear fault observation, and reliable valve switching can all contribute to lower lifecycle costs. These features may provide an advantage over basic dryers that require more frequent manual adjustment or more difficult internal servicing.

6. Manufacturing and Engineering Strengths

The manufacturer operates a standardized workshop with an area of approximately 3,000 square meters, supported by office and warehouse facilities. This infrastructure provides a foundation for organized fabrication, assembly, inspection, storage, and project coordination.

The company’s activities cover research and development, product design, manufacturing, installation, and after-sales service. This vertical integration allows technical information to move between design and production teams. It also helps the manufacturer respond to application-specific requirements instead of treating every dryer as an isolated standard product.

Manufacturing a reliable adsorption dryer requires disciplined control of several processes. Pressure vessels must be fabricated according to applicable design requirements. Internal airflow components must be positioned accurately. Valves, heaters, sensors, control cabinets, pipework, and insulation must be assembled in a way that supports safe operation and convenient maintenance.

During production, quality depends on material selection, welding quality, dimensional control, surface treatment, sealing, pressure testing, electrical inspection, and functional testing. A well-organized manufacturing process reduces the possibility of leakage, misalignment, wiring errors, and incomplete valve actuation.

Assembly quality is especially important for a twin-tower dryer. The towers must provide consistent gas flow, and the switching valves must operate in the correct sequence. Incorrect connections or inadequate sealing can compromise both drying performance and safety.

The company’s experience in gas separation and purification equipment also supports the integration of dryers with other process equipment. Its product portfolio includes PSA nitrogen generators, PSA oxygen generators, membrane nitrogen and oxygen generators, nitrogen purification units, and ammonia decomposition hydrogen purification systems.

This product knowledge is valuable because a dryer often operates as part of a larger gas plant. The required gas quality may depend on the performance of a compressor, receiver, coalescing filter, carbon filter, gas generator, purification unit, and final distribution network. A manufacturer familiar with the complete system can provide more coherent technical coordination.

The company reports applications in petrochemical, textile, food-processing, automotive, heat-treatment, and SMT electronics industries. These industries have different gas-quality priorities. Food processing may require clean and stable gas. Heat treatment may require reliable process-gas conditions. Electronics manufacturing may be sensitive to moisture and contamination. Automotive and petrochemical plants may prioritize continuous operation, maintainability, and compatibility with plant utilities.

International project support also requires attention to documentation, packaging, commissioning, spare parts, operator training, and communication. A manufacturer with experience serving customers in multiple regions can develop more practical procedures for export equipment, although the final project requirements should always specify applicable standards and certifications.

7. Recommended System Configuration

The dryer should normally be installed as part of a complete compressed-air treatment system rather than as a standalone vessel. A typical arrangement may include an air compressor, aftercooler, water separator, air receiver, particulate filter, coalescing filter, adsorption dryer, final filter, and downstream distribution line.

The aftercooler reduces the temperature of compressed air and allows bulk liquid water to be removed. A water separator should discharge collected condensate reliably. Upstream filtration protects the desiccant and pneumatic valves from oil aerosols, liquid water, rust, and solid particles.

Oil contamination is particularly harmful to many desiccants because it can coat the adsorbent surface and reduce its ability to capture water vapor. For this reason, filtration should be selected according to the compressor type and the required gas quality.

An air receiver can help stabilize flow and pressure, reduce rapid compressor cycling, and provide a buffer during changes in demand. The receiver should be equipped with appropriate drainage and safety protection.

Downstream filtration may be used to capture desiccant dust or particles generated during operation. The final filter grade should be selected according to the sensitivity of the process and the cleanliness requirements of the gas.

Correct piping is also important. The inlet and outlet lines should be sized to avoid unnecessary pressure loss. Pipe supports should prevent mechanical loads from being transferred to the dryer connections. Isolation valves and bypass arrangements may be considered where continuous plant operation is required during maintenance.

The installation area should provide sufficient clearance for access to the control panel, pneumatic valves, sight glass, filling port, drains, filters, and electrical components. Ventilation should be considered because the regeneration process uses heat. The equipment should be protected from flooding, excessive dust, corrosive atmospheres, and unauthorized access.

8. Operating Cycle and Control Sequence

During the adsorption stage, wet compressed air enters the active tower. The airflow passes through the desiccant bed, where water vapor is adsorbed onto the surface and within the pores of the desiccant. Dry gas then leaves the tower and enters the downstream process.

At the same time, the second tower is isolated from the wet inlet stream. A controlled quantity of dry gas is directed through the regeneration path. The regeneration gas is heated and passed through the saturated desiccant. Heat reduces the strength of the water-desiccant interaction, allowing moisture to be released and carried away.

After heating, the regenerated tower may enter a cooling or pressure-equalization stage, depending on the control program. Cooling is important because gas leaving a very hot desiccant bed can have different moisture characteristics, and excessive temperature may affect downstream equipment.

When the control system determines that the regeneration sequence is complete, the valves gradually switch the towers. The regenerated tower becomes the adsorption tower, and the previously active tower begins its regeneration cycle.

The PLC controls the order and duration of these stages. Alarms may be configured for high temperature, low pressure, valve malfunction, electrical faults, abnormal cycle status, or other conditions specified in the final control design.

Operators should avoid changing cycle times or heater settings without confirming the effect on dew point, regeneration completeness, and equipment safety. Any adjustment should be based on measured operating data and the recommendations provided with the final equipment documentation.

9. Desiccant Protection and Service Life

Desiccant performance is affected by moisture, oil, dust, liquid water, temperature, pressure, and mechanical stress. The most effective way to extend desiccant service life is to prevent contaminants from entering the adsorption towers.

Liquid water carryover should be avoided. A malfunctioning aftercooler drain or water separator can expose the desiccant to liquid water, causing rapid degradation or bed damage. Coalescing filters should be maintained so that oil aerosols do not reach the dryer.

The airflow diffusion device contributes to service life by distributing the gas more evenly and reducing localized erosion. However, the desiccant must still be loaded correctly. Excessive voids, poor leveling, incorrect support screens, or unsuitable particle size can lead to channeling and pressure instability.

Desiccant replacement intervals vary according to operating conditions and should not be based solely on calendar time. Pressure-drop trends, dew-point performance, visual inspection, and the condition of upstream filters provide useful information when planning replacement.

During replacement, the vessel should be isolated, depressurized, electrically disconnected where required, and allowed to cool. Personnel should follow appropriate procedures for handling spent desiccant and dust. The filling port should be sealed correctly after maintenance to prevent air leakage and contamination.

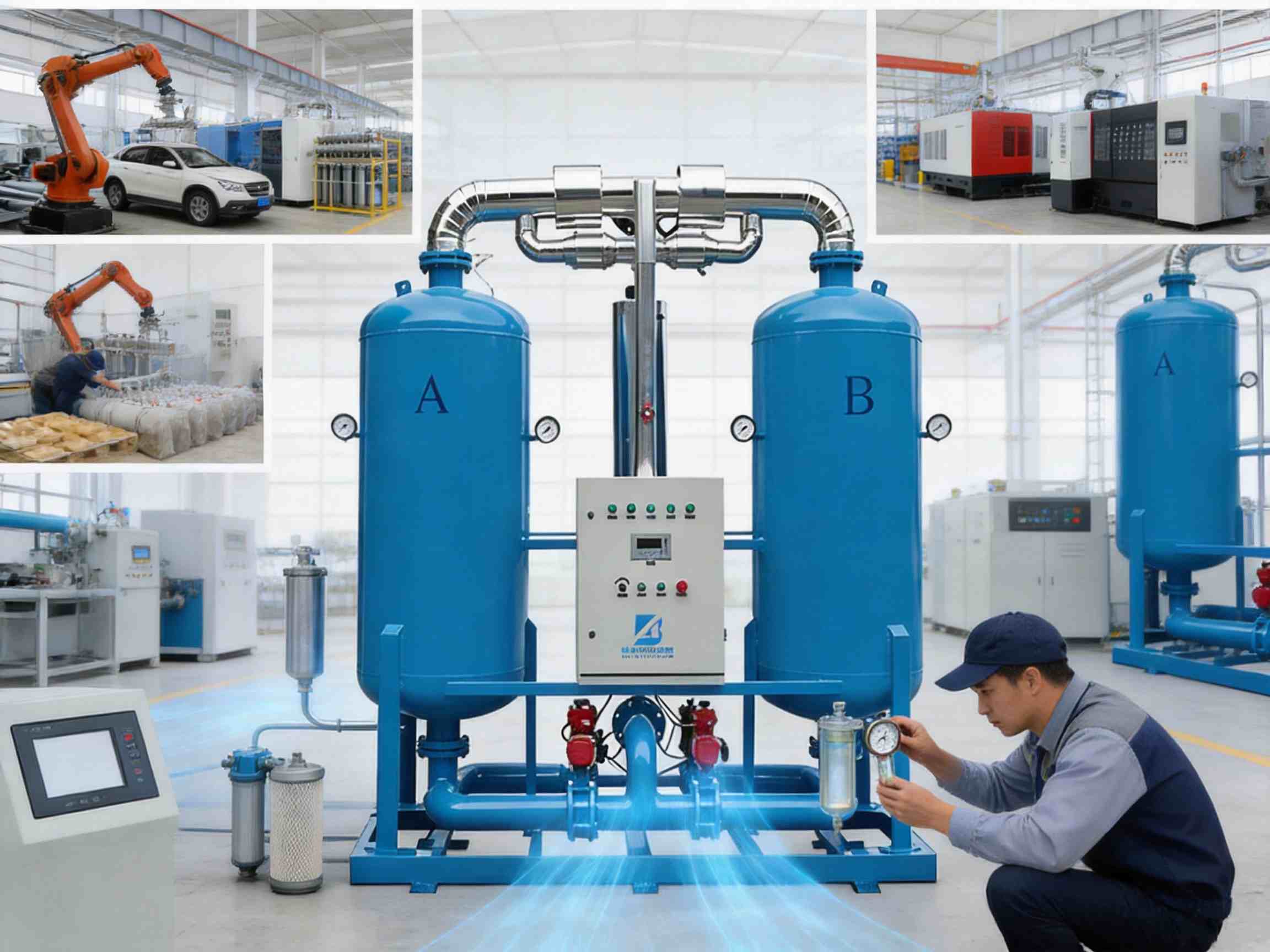

10. Applications Across Industrial Sectors

10.1 Gas Separation Plants

Air separation and gas-generation equipment often requires dry feed air. Moisture can affect adsorption media, valves, instrumentation, and product-gas quality. Installing a micro-heat dryer upstream of a gas-generation system can help stabilize the feed conditions.

For PSA nitrogen or oxygen systems, the dryer may support more consistent adsorbent performance and protect the process from excessive water loading. The final configuration should be engineered according to the PSA inlet specifications and the required product purity.

10.2 Food Processing

Dry compressed air is used for pneumatic controls, packaging machinery, conveying systems, and process applications. Moisture can affect packaging quality, valve reliability, and the hygiene of production systems.

Where compressed air comes into direct or indirect contact with food, the complete treatment train must be selected according to the applicable cleanliness, oil-removal, and regulatory requirements. The dryer provides moisture control, while filtration and system hygiene address other contamination risks.

10.3 Textile Manufacturing

Textile facilities use compressed air for weaving, spinning, pneumatic controls, cleaning, and automation. Moisture may cause corrosion, inconsistent pneumatic performance, and problems with product handling or finishing operations.

A stable dew point helps protect air-operated equipment and reduce moisture-related maintenance. The model should be selected based on peak rather than average demand, taking into account production shifts and future expansion.

10.4 Automotive Manufacturing

Automotive plants use compressed air throughout assembly, machining, painting, robotics, and quality-control systems. Moisture can affect paint application, pneumatic tools, precision equipment, and automation.

The low pressure-drop design and automatic control of the micro-heat dryer can support the continuous operation expected in automotive production. Specific paint-shop applications may require additional filtration and air-quality controls.

10.5 Heat Treatment

Heat-treatment operations may use controlled gases and instrument air in furnaces, burners, valves, and monitoring systems. Moisture control can support process stability and protect sensitive instruments.

Where the dryer is used in a process-gas application rather than ordinary compressed air, compatibility between the gas composition, desiccant, seals, valves, and heater materials must be confirmed before selection.

10.6 SMT and Electronics Manufacturing

Surface-mount technology and electronics facilities rely on clean, dry utilities for pneumatic placement equipment, soldering systems, handling equipment, and environmental controls. Moisture can contribute to equipment malfunction and process variation.

Stable drying performance, low pressure drop, and reliable automatic switching are beneficial for production lines that operate continuously and require predictable utility quality.

10.7 Petrochemical and General Process Industries

Petrochemical plants use dry instrument air and process gas for control valves, analyzers, actuators, and purification systems. A dryer must be selected with careful attention to hazardous-area requirements, gas composition, electrical classification, and site safety procedures.

The broad pressure range and available higher-pressure configurations make the product adaptable to some process applications, subject to engineering confirmation and the applicable safety standards.

11. Selecting the Correct Model

The first selection factor is rated gas processing capacity. The required model should be based on the maximum expected flow, not simply the average consumption. Future production expansion and temporary peak demand should also be considered.

The second factor is inlet pressure. A dryer designed for 0.4–1.0 MPa should not be operated outside its approved range. Higher-pressure systems require a suitable configuration with pressure-rated vessels, valves, instruments, and safety devices.

The third factor is inlet temperature. If compressed air enters above the specified 50°C limit, the upstream cooling system should be improved or a different dryer configuration should be considered.

The fourth factor is the target dew point. The standard -40°C option may be suitable for many industrial applications. More demanding processes may require a -50°C, -60°C, or -73°C configuration, but lower dew points may require different cycle settings and additional engineering.

The fifth factor is the available electrical supply. The published information identifies 220/50 V/Hz for BEL-3 and 380/50 V/Hz for BAL-12. The electrical details for other models should be verified in the commercial and technical offer.

The sixth factor is installation space. Larger models have substantial dimensions and weight. Foundations, lifting arrangements, access paths, service clearances, and floor loading must be checked before delivery.

The seventh factor is gas composition. The standard product is intended for air and compatible industrial gases, but oxygen-rich, hydrogen-rich, corrosive, toxic, or hydrocarbon-containing streams may require special materials, seals, electrical components, and safety arrangements.

12. Installation, Commissioning, and Maintenance

Before commissioning, the piping should be cleaned, the vessels inspected, all connections checked, and the electrical supply verified. Filters and drains should be installed and tested. The equipment should be level and securely anchored where required.

Initial startup should be performed gradually. Sudden pressurization can disturb the desiccant bed and create excessive mechanical stress. The operator should confirm that valves open and close in the correct sequence and that the heater operates within its programmed temperature range.

During normal operation, personnel should monitor inlet and outlet pressure, pressure drop, temperature, dew point, valve activity, and alarm status. A gradual increase in pressure drop may indicate filter loading, desiccant dust, flow restriction, or a problem with internal components.

Filters should be inspected and replaced according to their differential-pressure indication or maintenance schedule. Automatic drains should be checked because condensate accumulation can quickly damage downstream equipment.

The sight glass should be kept clean enough to allow meaningful inspection. Pneumatic valve supply air should remain clean and dry. Control-panel connections, heater terminals, and sensor wiring should be inspected during planned maintenance.

Any abnormal dew-point increase should be investigated systematically. Possible causes include excessive inlet moisture, high inlet temperature, insufficient regeneration, heater failure, valve leakage, incorrect cycle timing, desiccant deterioration, or downstream contamination.

Maintenance records should include operating pressure, flow, dew point, filter changes, alarm events, valve service, heater inspection, and desiccant replacement. Trend data helps identify gradual deterioration before it causes a production interruption.

13. Safety Considerations

The dryer contains pressurized vessels and heated components. Installation and operation must follow the applicable pressure-equipment, electrical, and occupational-safety requirements. Safety valves, pressure gauges, isolation devices, and electrical protection should be provided according to the final engineering design.

Before opening a vessel or removing a flange, the tower must be completely isolated and depressurized. Heated components must be allowed to cool. Lockout and tagout procedures should be applied during electrical and mechanical maintenance.

Operators should not bypass PLC interlocks or disable alarms without authorization. If a valve does not switch correctly, the equipment should be placed in a safe condition while the cause is investigated.

For installations in hazardous or classified areas, the control cabinet, heater, sensors, valves, and wiring must meet the site’s required classification. When processing gases other than air, material compatibility and gas-specific safety procedures must be reviewed in advance.

14. Why Manufacturer Support Matters

Dryer performance is closely connected to system design. A technically capable manufacturer can help customers determine the appropriate capacity, dew point, pressure, electrical supply, filtration arrangement, and installation configuration.

Technical support is also important when the dryer is integrated with a PSA nitrogen generator, PSA oxygen generator, membrane system, compressor package, or other purification equipment. Poor coordination between these units can lead to unstable pressure, excess regeneration consumption, inadequate flow, or unreliable product quality.

Because Zhejiang Baiao Gas Equipment Co., Ltd. designs and supplies multiple types of gas separation and purification equipment, it can approach the dryer as part of a broader industrial gas solution. Its capabilities include equipment development, production, installation, and after-sales service.

The company reports a sales network covering more than 30 provinces and cities in China, together with international market activity. This experience can support project communication, spare-parts planning, commissioning coordination, and service arrangements. Customers should still confirm the exact scope of supply, warranty, documentation, training, and response procedures in the purchase contract.

15. Commercial and Lifecycle Value

When evaluating a regenerative adsorption dryer, purchase price is only one part of the total cost. Electricity, regeneration-gas consumption, filter replacement, desiccant replacement, valve maintenance, downtime, and service support all influence lifecycle value.

The micro-heat configuration is designed to limit regeneration air consumption while maintaining a strong regeneration effect. The specified 4–6% consumption provides a basis for estimating operating cost, but the final calculation should use the actual gas price, compressor efficiency, operating schedule, and expected load profile.

Low pressure drop can also contribute to lifecycle savings. If the dryer creates unnecessary resistance, the compressor may need to operate at a higher discharge pressure. A lower pressure drop reduces this penalty and preserves pressure for the production equipment.

Long-life valves can reduce the frequency of replacement and lower the risk of unplanned shutdown. The flanged filling port may shorten desiccant maintenance work. The sight glass and PLC control can reduce troubleshooting time. Together, these features support a maintenance strategy based on planned intervention rather than emergency repair.

The correct model remains essential. An oversized dryer may increase capital expenditure and installed power, while an undersized dryer may experience high velocity, early moisture breakthrough, excessive switching, and reduced desiccant life. Engineering selection should therefore consider both current and future demand.

16. Frequently Asked Questions

Q1: What is a micro-heat regenerative adsorption dryer?

A micro-heat regenerative adsorption dryer removes water vapor from compressed air or compatible process gas by using a desiccant. It regenerates the saturated desiccant with a controlled flow of gas that is heated to improve moisture removal. The design combines features of heated and heatless regeneration.

Q2: What dew point can the dryer provide?

The standard stated dew point is no higher than -40°C. Configurations with dew points from -40°C to -73°C are available. The actual result depends on inlet pressure, flow, temperature, gas quality, desiccant condition, cycle settings, and correct installation.

Q3: How much regeneration gas does it consume?

The stated regeneration air consumption is approximately 4–6%. Actual consumption may vary with operating pressure, inlet moisture, target dew point, cycle time, ambient conditions, and control settings.

Q4: What is the standard operating pressure?

The standard operating pressure range is 0.4–1.0 MPa. Higher-pressure configurations from 1.0–3.0 MPa are available when specified during engineering and quotation.

Q5: What is the maximum inlet temperature?

The stated inlet temperature limit is 50°C. An aftercooler and water separator should normally be installed upstream to reduce temperature and remove liquid condensate.

Q6: How does the dryer compare with a heatless adsorption dryer?

The micro-heat dryer uses heating during regeneration, which can improve desiccant regeneration and reduce the amount of dry gas consumed. A heatless dryer may have a simpler configuration, but it commonly relies more heavily on purge gas. The best choice depends on capital cost, energy price, dew-point requirements, available compressor capacity, and operating conditions.

Q7: How does it compare with a refrigerated dryer?

An adsorption dryer is designed for much lower pressure dew points than a typical refrigerated dryer. Refrigerated dryers may be economical for general plant air, while adsorption dryers are more suitable for applications requiring approximately -40°C or lower.

Q8: What protects the desiccant from contamination?

Upstream water separation, particulate filtration, and oil-removal filtration protect the desiccant. Proper drainage and regular filter maintenance are essential. The specialized airflow diffusion device also helps reduce uneven loading and mechanical stress within the bed.

Q9: How often must the desiccant be replaced?

There is no universal replacement interval. Service life depends on inlet moisture, oil carryover, dust, temperature, pressure, flow, and cycle settings. Dew-point trends, pressure drop, visual inspection, and maintenance records should be used to determine replacement timing.

Q10: What is the purpose of the PLC control system?

The PLC coordinates the adsorption, regeneration, heating, cooling, valve switching, and alarm functions. Automatic sequencing provides repeatable operation and helps prevent incorrect tower switching or incomplete regeneration.

Q11: Why are the pneumatic valves important?

The valves repeatedly direct gas between the drying and regeneration towers. The product uses pneumatic valves with a stated service life of more than one million cycles. Reliable valves help reduce leakage, switching failures, pressure instability, and unplanned downtime.

Q12: What models are available?

The published range includes BEL-3, BEL-6, BAL-12, BEL-20, BEL-30, BEL-40, BEL-60, BEL-80, BEL-100, BEL-150, and BEL-200. Rated processing capacities range from approximately 3 Nm³/h to 220 Nm³/h.

Q13: Can the dryer be used for gases other than air?

It may be possible to configure the equipment for compatible industrial gases, but gas composition must be reviewed before ordering. Oxygen, hydrogen, corrosive gases, toxic gases, and hydrocarbon-containing streams may require special materials, seals, controls, and safety measures.

Q14: What information should be provided for a quotation?

Customers should provide gas type, flow rate, inlet pressure, inlet temperature, required dew point, operating schedule, electrical supply, ambient conditions, installation location, applicable standards, and downstream equipment requirements. This information allows the manufacturer to confirm the correct model and configuration.

Q15: Does the manufacturer provide complete gas-system solutions?

The manufacturer supplies gas separation and purification equipment, including PSA nitrogen and oxygen generators, membrane gas generators, nitrogen purification units, and ammonia decomposition hydrogen purification systems. Its capabilities include research and development, design, manufacturing, installation, and after-sales service, allowing the dryer to be considered within a complete gas-treatment project.

17. Conclusion

The BEL Micro-heat Regenerative Adsorption Dryer is designed for industrial users who require dependable moisture removal, low dew point, controlled regeneration, and practical maintenance access. Its hybrid regeneration principle combines heated regeneration with reduced purge-gas consumption, offering a balanced alternative to conventional heatless and basic heated dryers.

The principal technical advantages include a stated regeneration-air consumption of 4–6%, standard dew-point performance of no higher than -40°C, optional dew points down to -73°C, operating-pressure options up to 3.0 MPa, pressure drop of no more than 0.02 MPa, and adjustable cycle times of approximately 60–120 minutes.

Its imported PLC control system, flanged filling port, operating sight glass, long-life pneumatic valves, and specialized airflow diffusion device address important requirements for stable operation and maintainability. The model range supports processing capacities from small installations to systems rated at approximately 220 Nm³/h.

The manufacturer’s broader experience in gas separation and purification equipment adds value when the dryer is integrated with compressors, PSA systems, membrane systems, and industrial gas plants. Its production, installation, and service capabilities provide a foundation for customized equipment solutions.

For the best result, the dryer should be selected as part of a complete engineered system. Correct upstream cooling and filtration, accurate capacity calculation, suitable electrical and pressure specifications, safe installation, and regular maintenance are essential to achieving the expected service life and dew-point performance.

References

1. Product technical information for the BEL Micro-heat Regenerative Adsorption Dryer, including operating principle, features, specifications, and model data.

2. Industrial compressed-air treatment principles relating to moisture separation, adsorption drying, filtration, pressure drop, and dew-point control.

3. General engineering practices for pressure vessels, pneumatic valve systems, electrical control panels, and industrial gas purification equipment.

4. Manufacturer information concerning gas separation systems, PSA gas generators, membrane gas generators, purification units, production facilities, and after-sales support.

5. General maintenance guidance for desiccant beds, compressed-air filters, condensate drains, pneumatic valves, heaters, and PLC-controlled drying systems.

Product: BEL Micro-heat Regenerative Adsorption Dryer
